Series

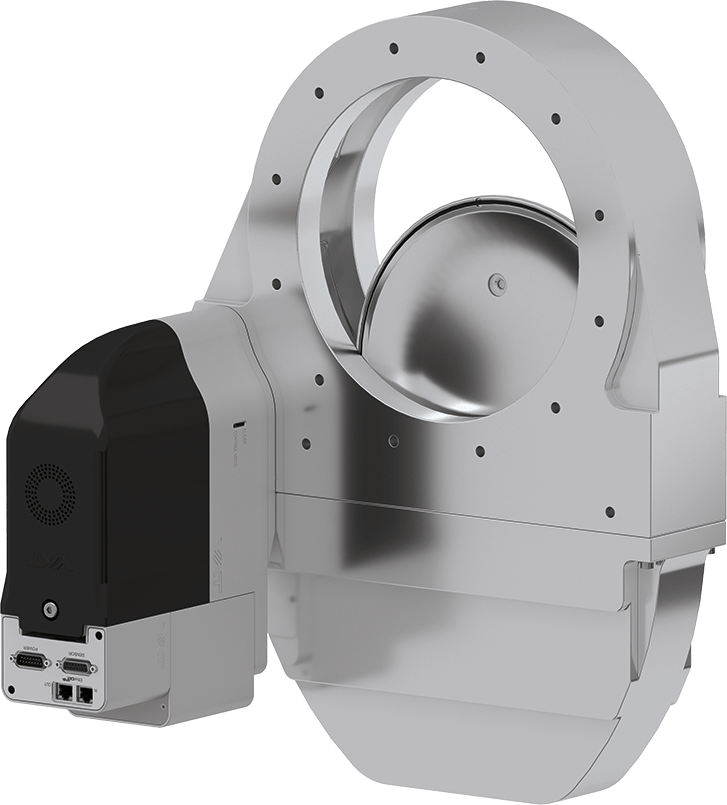

65.5 HV Pendulum Control Valve

  • 65.5 - 65548-PACQ-CHO1
  • 65.5 HV Pendulum Control Valve
65.5 - 65548-PACQ-CHO1
65.5 HV Pendulum Control Valve
View dimensions

Series

65.5 HV Pendulum Control Valve

Article number
65548-PACQ-CHO1
1 × 10-8 mbar to 1.2 bar (abs)

Ideal for corrosive etching applications with high process pressure and low volume flows

  • Technical data
  • Downloads
Size
DN 250 (10")
Flange
ISO-F
Material
Aluminum
Actuator
Stepper motor
Controller interface + sensors
Logic (A/D) / 2 sensors
Controller Configuration
SPS and PFO
Position Indication Signal
No
Solenoid
No
Pressure Min.
1 × 10-8 mbar
Pressure Max.
1.2 bar (abs)
Conductance
22000 ls⁻¹
Differential Pressure on Plate
≤ 1 bar
Differential Pressure at opening
≤ 1 bar
Max. compressed air pressure
7 bar / 102 psi
Min. compressed air pressure
4 bar / 58 psi
Close open time
1 s
Weight
36 kg / 79.37 lbs
Max. temperature valve body
≤ 120 °C
Add-Ons for Your Product
Valve
Controller-Interface
Gate
Temperature Management

65.5 HV Pendulum Control Valve 65548-PACQ-CHO1 Product Datasheet

PDF 135.86 KB

65.5 HV Pendulum Control Valve 65548-PACQ-CHO1 Manual

PDF 3.00 MB

65.5 HV Pendulum Control Valve 65548-PACQ-CHO1 2D Dimension Drawing

PDF 902.07 KB

Spare parts

Please specify your spare part need at the end of your selection process, on the next page.
