Series

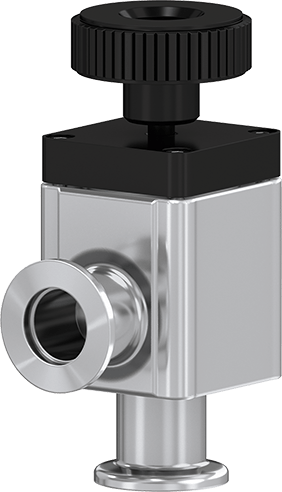

26.4 HV Angle Valve

  • 26.4 - 26436-QA01
  • 26.4 HV Angle Valve
26.4 - 26436-QA01
26.4 HV Angle Valve
View dimensions

Series

26.4 HV Angle Valve

Article number
26436-QA01

Uncompromised flexibility and reliability

  • Technical data
  • Downloads
Size
DN 63 (2 ½")
Flange
ISO-K
Material
Aluminum
Actuator
Manual
Position Indication Signal
No
Solenoid
No
Pressure Min.
1 × 10-8 mbar
Pressure Max.
4.0 bar (abs)
Conductance
160 ls⁻¹
Differential Pressure on Plate
≤ 5 bar
Differential Pressure at opening
≤ 1 bar
Weight
2.5 kg / 5.51 lbs
Max. Temperature Actuator
≤ 120 °C
Max. temperature valve body
≤ 150 °C
Add-Ons for Your Product
Valve
Actuator
Gate
Position indicator

26.4 HV Angle Valve 26436-QA01 2D Dimension Drawing

PDF 191.41 KB

26.4 HV Angle Valve 26436-QA01 Manual

PDF 506.11 KB

26.4 HV Angle Valve 26436-QA01 Product Datasheet

PDF 16.71 KB

26.4 HV Angle Valve 26436-QA01 3D CAD File

ZIP 140.46 KB
