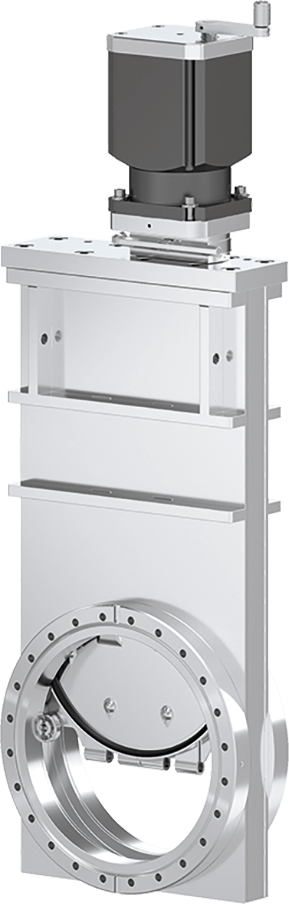

UHV Gate Valve - VAT Valves

Size

DN 160 (6")

Flange

CF-C (UNF threads)

Material

Stainless steel

Actuator

Manual

Position Indication Signal

Yes

Solenoid

Pressure Min.

1 × 10^-¹⁰ mbar

Pressure Max.

1.6 bar (abs)

Conductance

5880 ls⁻¹

Differential Pressure on Plate

≤ 1.6 bar

Differential Pressure at opening

≤ 0.03 bar

Min. compressed air pressure

4 bar / 58 psi

Max. compressed air pressure

7 bar / 102 psi

Cylinder volume

0.14 l

Close open time

1.5 s

Max. temperature valve body

≤ 250 °C

Max. Temperature Actuator

≤ 250 °C

Max. temperature position indicator

≤ 80 °C

Weight

18 kg / 39.68 lbs

Add-Ons for Your Product

Valve

Customer specific flange

Additional ports

Compact version

Gate

O-ring seal

With fixations for orifices

With window

With fixations for foils

Alternative sealing materials

Position indicator

Double position indicator for "open" and "close"

Temperature Management

Increased bake-out temperature on manual actuator up to 250 °C

Increased bake-out temperature on pneumatic actuator up to 200 °C

Actuator

Different solenoid specification

Series

10.8 UHV Gate Valve
