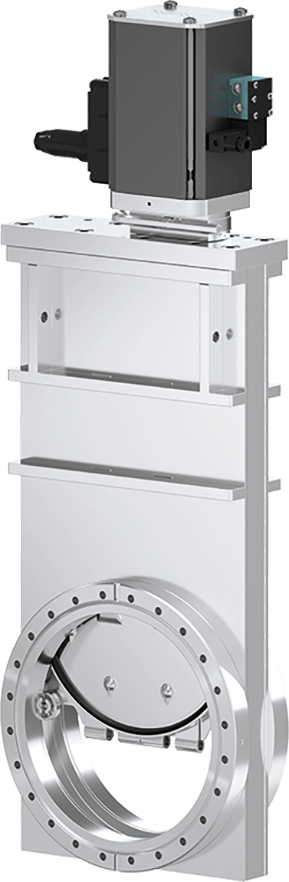

Name: 10.8 - 10844-PE44
SKU: 10844-PE44

Technical data
Downloads

Size

DN 160 (6")

Flange

ISO-F

Material

Stainless steel

Actuator

Pneumatic: double acting

Position Indication Signal

Yes

Solenoid

Yes

Pressure Min.

1 × 10^-¹⁰ mbar

Pressure Max.

1.6 bar (abs)

Conductance

5880 ls⁻¹

Differential Pressure on Plate

≤ 1.6 bar

Differential Pressure at opening

≤ 0.03 bar

Max. temperature solenoid

≤ 50 °C

Cylinder volume

0.14 l

Max. compressed air pressure

7 bar / 102 psi

Min. compressed air pressure

4 bar / 58 psi

Max. temperature position indicator

≤ 80 °C

Close open time

1.5 s

Weight

19.4 kg / 42.8 lbs

Max. Temperature Actuator

≤ 200 °C

Max. temperature valve body

≤ 250 °C

Add-Ons for Your Product

Valve

Customer specific flange

Compact version

Additional ports

Position indicator

Double position indicator for \"open\" and \"close\

Gate

With window

With fixations for orifices

With fixations for foils

O-ring seal

Alternative sealing materials

Temperature Management

Increased bake-out temperature on manual actuator up to 250 °C

Increased bake-out temp. (solenoid valve & pos. indicator) of pneumatic actuator ≤200 °C

Actuator

Different solenoid specification

Sealing Kit 10.8 DN160 ID: 82486-R1

Request for quote
