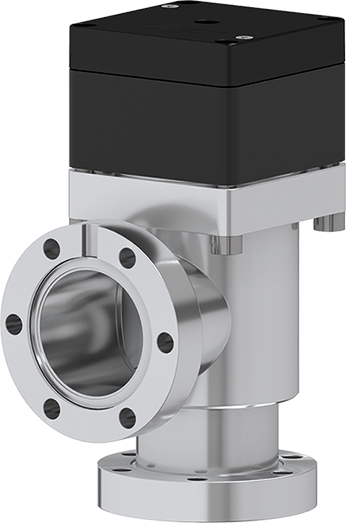

28.4 UHV Angle Valve

View dimensions

Series

28.4 UHV Angle Valve

Article number

28432-GE41

5 × 10^-10 mbar to 5 bar (abs)

Outstandingly Low Outgassing Performance

Technical data
Downloads

Size

DN 40 (1 ½")

Flange

CF-R (rotatable flange)

Material

Stainless steel

Actuator

Pneumatic, single acting with closing spring (NC)

Position Indication Signal

Yes

Solenoid

Yes

Pressure Min.

1 × 10^-¹⁰ mbar

Pressure Max.

5.0 bar (abs)

Conductance

45 ls⁻¹

Differential Pressure on Plate

≤ 5 bar

Differential Pressure at opening

≤ 1 bar

Min. compressed air pressure

4 bar / 58 psi

Max. compressed air pressure

8 bar / 116 psi

Cylinder volume

0.035 l

Close open time

0.55 s

Max. temperature valve body

≤ 150 °C

Max. Temperature Actuator

≤ 120 °C

Max. temperature position indicator

≤ 80 °C

Max. temperature solenoid

≤ 80 °C

Weight

1.6 kg / 3.53 lbs

Add-Ons for Your Product

Valve

Customer specific flange

Gate

Alternative sealing materials

Actuator

Common connector for position indicator and solenoid

One-touch pneumatic fittings

Different solenoid specification

Temperature Management

Increased bake-out temperature on actuator up to 120 °C
