Series

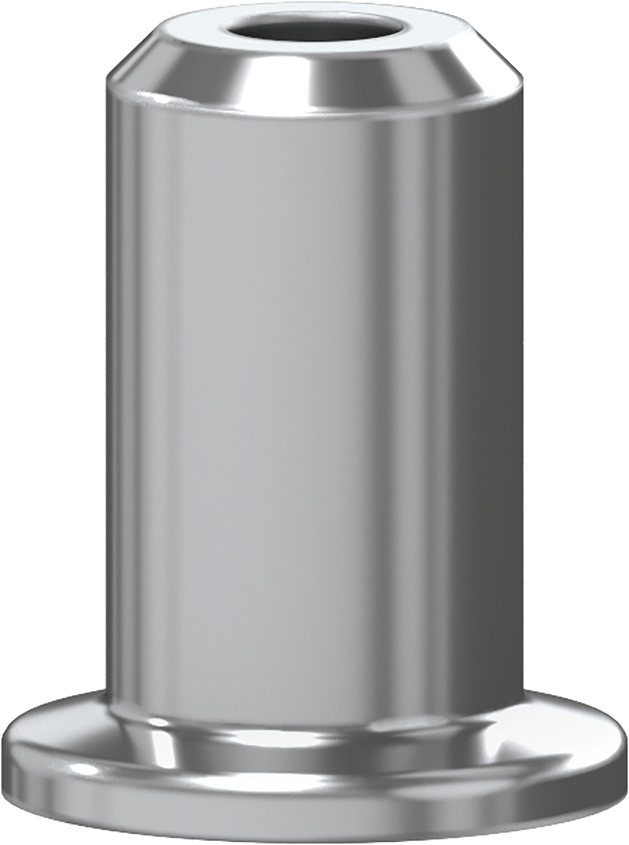

21.2 Pressure Relief Valve

  • 21.2 - 21224-KEXX
  • 21.2 - Pressure Relief Valve
21.2 - 21224-KEXX
21.2 - Pressure Relief Valve
View dimensions

Series

21.2 Pressure Relief Valve

Article number
21224-KEXX
1 × 10-8 mbar to 1.2 bar (abs)

Overpressure Protection for Vacuum Systems

  • Technical data
  • Downloads
Size
DN 16 (⅝")
Flange
ISO-KF
Material
Stainless steel
Position Indication Signal
No
Solenoid
No
Pressure Min.
1 × 10-8 mbar
Pressure Max.
1.2 bar (abs)
Differential Pressure on Plate
≤ 1.2 bar
Differential Pressure at opening
≤ 1.5 bar
Weight
0.46 kg / 1.01 lbs
Max. temperature valve body
≤ 150 °C

21.2 Pressure Relief Valve 21224-KEXX 2D Dimension Drawing

PDF 93.63 KB

21.2 Pressure Relief Valve 21224-KEXX Manual

PDF 243.50 KB

21.2 Pressure Relief Valve 21224-KEXX Product Datasheet

PDF 101.32 KB

21.2 Pressure Relief Valve 21224-KEXX 3D CAD File

ZIP 11.52 KB

Spare parts

Please specify your spare part need at the end of your selection process, on the next page.
