Reliable Protection of Vacuum Systems from Pressures > 1.5 Bar

The main requirement of a modern pressure relief valve is its reliable and precise acting relief trigger. The 21.2 relief trigger is driven by a high durability pressure spring that is laid-out for extended lifetime. The trigger is calibrated to open the valve at a pressure of 1.2 to 1.5 bar. Its operating range is set between 1 x 10-8 mbar and 1.2 bar with a gas flow of max. 6 l/min.

Tested in thousands of demanding applications under various process conditions, the 21.2 series has proven its outstanding reliability.

VAT
Closed
VAT
Open

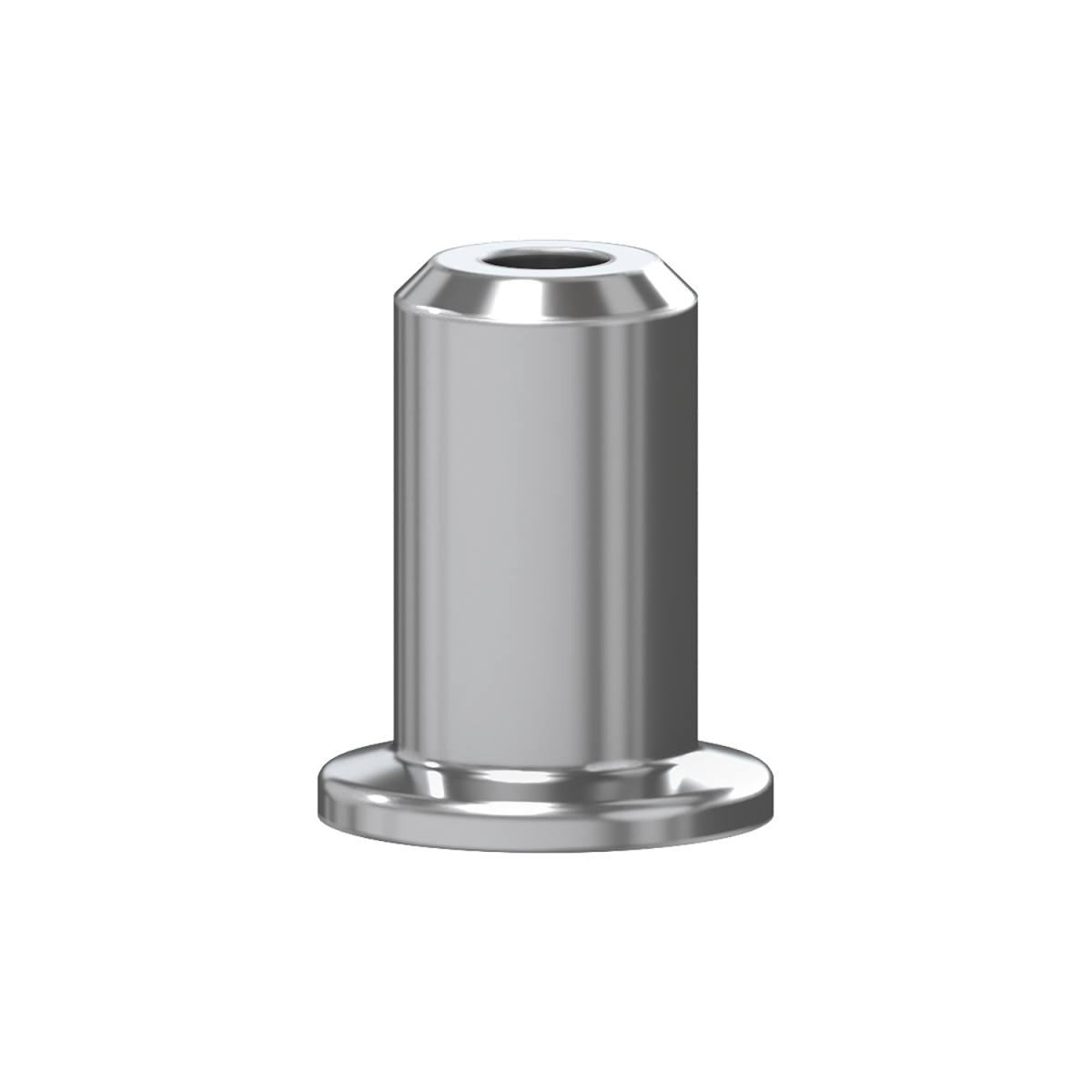

The 21.2 Pressure Relief Valve is available in DN 16mm (5/8“). The valve body is made of stainless steel. The standard flange is ISO-KF. Its bakeout temperature is ≤ 150 °C.

Key features of the 21.2 Pressure Relief Valve

Features：

    • Vacuum system protection > 1.5 bar
    • Trigger calibrated to open valve at 1.2 to 1.5 bar

Benefits：

    • Extended lifetime
    • Precise operation
    • Low cost of ownership
  • Technical data
Sizes DN 16 mm (⅝")
Body Material Stainless Steel
Standard Flanges ISO-KF
Leak RateVale Body, Valve Seat< 1 × 10-9 mbar ls-1
Pressure Range 1 × 10-8 mbar to 1.2 bar (abs)
Differential Pressure at Opening 1.2 to 1.5 bar
TemperatureAmbient0– 50°C
 Bakeout≤ 150°C
MaterialValve BodyAISI 304L (AISI 1.4306)
Seal FKM (Viton®)
Gasflow 0–6 l/min
Weight 0.046 kg / 1 lbs



Specify standard product

Get to the product details to specify your requirements to get a quote or to get a specific CAD data download.

Customized Solution

Specify your customized solution.

If you have your specification already at hand, please upload it and submit it to us. We are happy to send you a quote.
