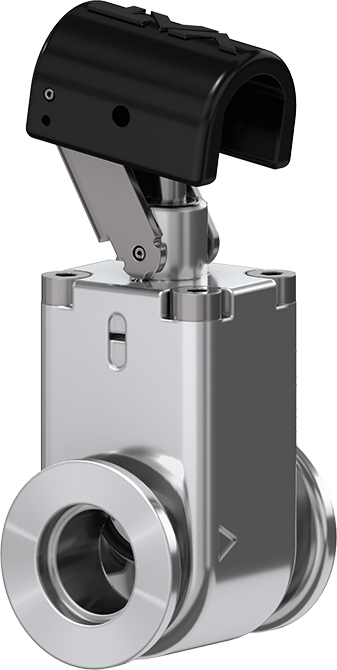

Name: 01.2 - 01228-KA06
Brand: VAT
SKU: 01228-KA06

Technical data
Downloads

Size

DN 25 (1")

Flange

ISO-KF

Material

Aluminum

Actuator

Manual

Position Indication Signal

Solenoid

Pressure Min.

1 × 10^-⁷ mbar

Pressure Max.

1.0 bar (abs)

Conductance

34 ls⁻¹

Differential Pressure on Plate

≤ 1 bar

Differential Pressure at opening

≤ 0.03 bar

Max. temperature position indicator

≤ 80 °C

Weight

0.3 kg / 0.66 lbs

Max. Temperature Actuator

≤ 80 °C

Max. temperature valve body

≤ 100 °C

Add-Ons for Your Product

Valve

Customer specific flange

Actuator

Different solenoid specification

Sealing kit 01.2 DN25 ID: 92554-R1

Request for quote
