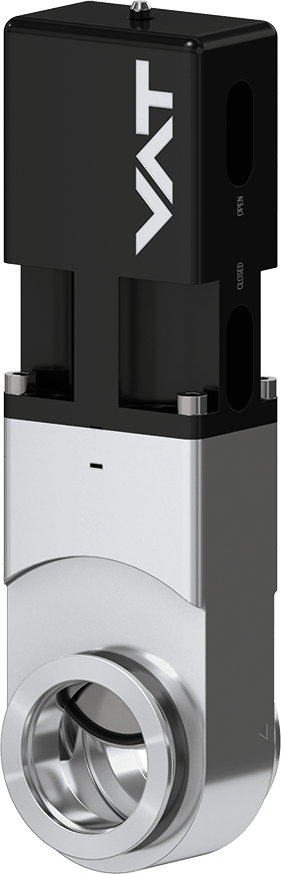

Name: 01.2 - 01224-KA24
Brand: VAT
SKU: 01224-KA24

Technical data
Downloads

Size

DN 16 (⅝")

Flange

ISO-KF

Material

Aluminum

Position Indication Signal

Yes

Solenoid

Pressure Min.

1 × 10^-⁷ mbar

Pressure Max.

2.0 bar (abs)

Conductance

10 ls⁻¹

Differential Pressure on Plate

≤ 2 bar

Differential Pressure at opening

≤ 0.03 bar

Cylinder volume

0.01 l

Max. compressed air pressure

7 bar / 102 psi

Min. compressed air pressure

4.5 bar / 65 psi

Max. temperature position indicator

≤ 80 °C

Close open time

0.7 s

Separated Actuator

Pneumatic actuator

Weight

0.8 kg / 1.76 lbs

Max. Temperature Actuator

≤ 80 °C

Max. temperature valve body

≤ 100 °C

Add-Ons for Your Product

Valve

Customer specific flange

Actuator

Different solenoid specification

Please specify your spare part need at the end of your selection process, on the next page.
