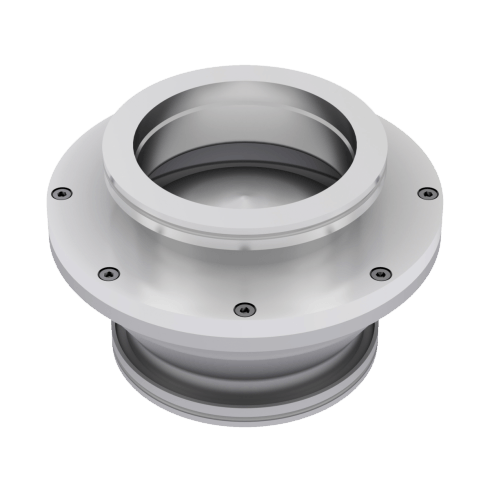

25.7 HV Quick Shut-Off Valve - VAT Group - 25744-QE99 - VAT Group

Technical data
Downloads

Size

DN 160 (6")

Flange

ISO-K

Material

Stainless steel

Conductance (laminar flow)

20000 ls⁻¹

Plate move time

≤ 15 ms

ΔP at the gate

≥ 5 mbar

Pressure Range

Vacuum to 1.2 bar (abs)

Heating and Cooling Rate

≤ 50 °C h^-1

Weight

6.3 kg / 13.9 lbs

Max. temperature valve body

≤ 200 °C

25.7 HV Quick Shut-Off Valve 25744-QE99 3D CAD File

25.7 HV Quick Shut-Off Valve 25744-QE99 2D Dimension Drawing

25.7 HV Quick Shut-Off Valve 25744-QE99 Product Datasheet

25.7 HV Quick Shut-Off Valve 25744-QE99 Manual

Sealing kit vacuum 25.7 DN160 ID: 1225405

Plate 25.7 DN160 ID: 1070363
