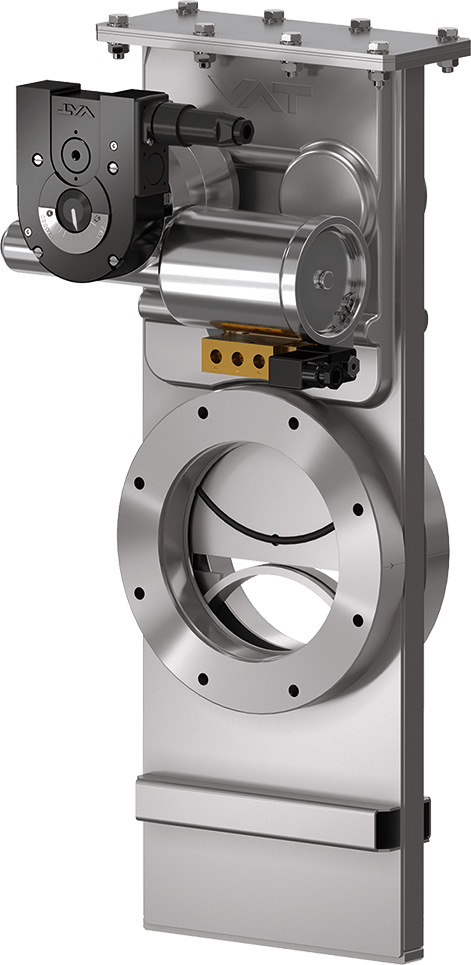

17.2 HV Gate Valve with Protective Ring

View dimensions

Series

17.2 HV Gate Valve with Protective Ring

Article number

17244-PE44

1 × 10^-8 mbar to 2 bar (abs)

Reliable Under Harsh Conditions

Technical data
Downloads

Size

DN 160 (6")

Flange

ISO-F (double number of holes)

Material

Stainless steel

Actuator

Pneumatic: double acting

Position Indication Signal

Solenoid

Yes

Pressure Min.

1 × 10^-⁸ mbar

Pressure Max.

2.0 bar (abs)

Differential Pressure on Plate

≤ 2 bar

Differential Pressure at opening

≤ 30 mbar

Conductance

5 145 ls-1

Min. compressed air pressure

4 bar / 58 psi

Max. compressed air pressure

7 bar / 102 psi

Max. temperature valve body

≤ 150 °C

Max. Temperature Actuator

≤ 50 °C

Max. temperature position indicator

≤ 80 °C

Max. temperature solenoid

≤ 50 °C

Close open time

2.5 s

Weight

31 kg / 68 lbs

Add-Ons for Your Product

Valve

Customer specific flange

Additional ports

Direct mounting option

Actuator

Different mounting positons defineable

Valve plate in third position defineable

Different solenoid specification

Position indicator

Double position indicator for "open" and "close"

Temperature Management

Heating and cooling options on request

Mechanics and protective ring are heat resistant
