11.1 HV Gate Valve

  • 11.1 - 11148-PE01
11.1 - 11148-PE01

Series

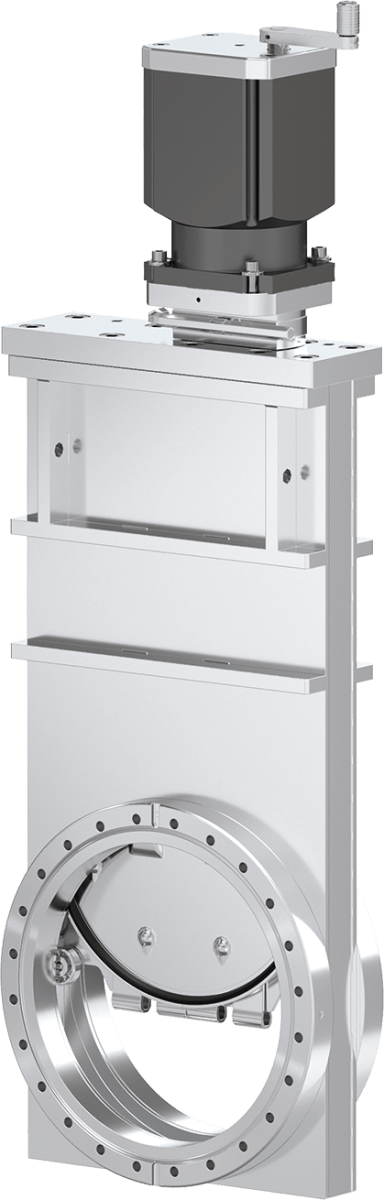

11.1 HV Gate Valve

Article number
11148-PE01
1 × 10-8 mbar to 1.6 bar (abs)

The standard for high vacuum isolation

  • Technical data
  • Downloads
Size
DN 250 (10")
Flange
ISO-F
Material
Stainless steel
Actuator
Manual
Position Indication Signal
No
Solenoid
No
Pressure Min.
1 × 10-8 mbar
Pressure Max.
1.2 bar (abs)
Conductance
21690 ls⁻¹
Differential Pressure on Plate
≤ 1.2 bar
Differential Pressure at opening
≤ 0.03 bar
Max. compressed air pressure
7 bar / 102 psi
Min. compressed air pressure
4 bar / 58 psi
Weight
51 kg / 112 lbs
Max. Temperature Actuator
≤ 120 °C
Max. temperature valve body
≤ 150 °C
