Series

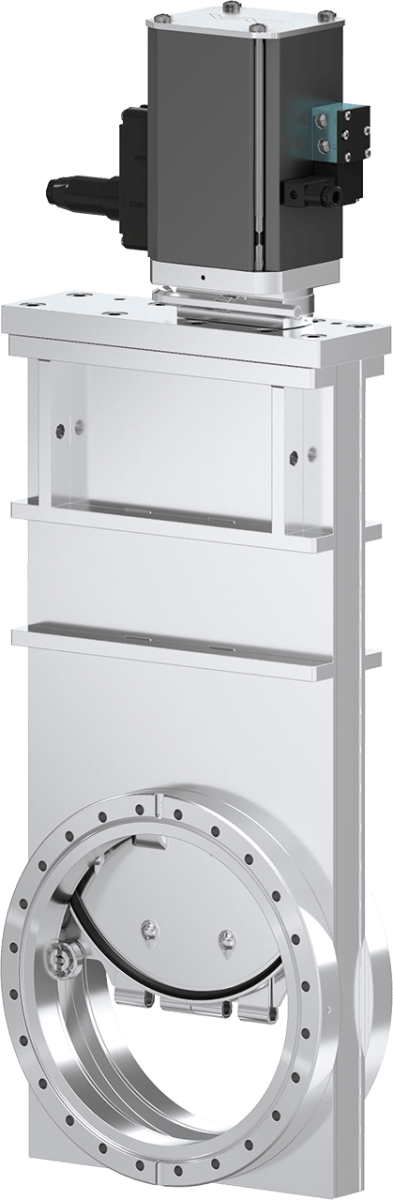

11.1 HV Gate Valve

  • 11.1 - 11146-UE44
11.1 - 11146-UE44

Series

11.1 HV Gate Valve

Article number
11146-UE44
1 × 10-8 mbar to 1.6 bar (abs)

The Standard for High Vacuum Isolation

  • Technical data
  • Downloads
Size
DN 200 (8")
Flange
CF-F (UNF threads)
Material
Stainless steel
Actuator
Pneumatic: double acting
Position Indication Signal
Yes
Solenoid
Yes
Pressure Min.
1 × 10-8 mbar
Pressure Max.
1.6 bar (abs)
Conductance
12 200 ls-1
Differential Pressure on Plate
≤ 1.6 bar
Differential Pressure at opening
≤ 0.03 bar
Max. temperature solenoid
≤ 50 °C
Max. compressed air pressure
7 bar / 102 psi
Min. compressed air pressure
4 bar / 58 psi
Max. temperature position indicator
≤ 80 °C
Close open time
2 s
Weight
29 kg / 64 lbs
Max. Temperature Actuator
≤ 120 °C
Max. temperature valve body
≤ 150 °C

11.1 HV Gate Valve 11146-UE44 Product Datasheet

PDF 159.67 KB

11.1 HV Gate Valve 11146-UE44 Manual

PDF 1.01 MB

11.1 HV Gate Valve 11146-UE44 2D Dimension Drawing

PDF 262.04 KB

11.1 HV Gate Valve 11146-UE44 3D CAD File

ZIP 632.18 KB
