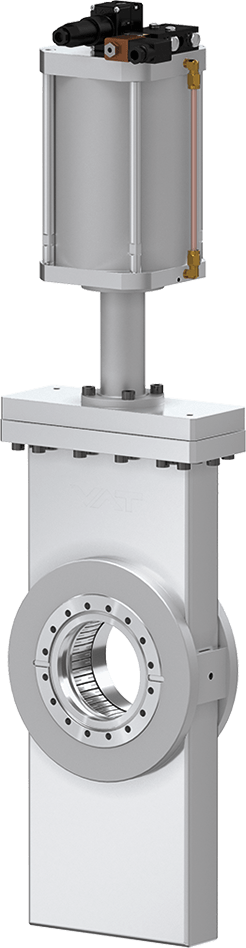

47.2 XHV RF All-Metal Gate Valve

  • 47.2 - 47240-CE24
  • 47.2 XHV RF All-Metal Gate Valve
47.2 - 47240-CE24
47.2 XHV RF All-Metal Gate Valve
View dimensions

Series

47.2 XHV RF All-Metal Gate Valve

Article number
47240-CE24
XHV to 2 bar (abs)

Reliable sector isolation for storage rings or microwave transmission lines (DN 40 - 160)

  • Technical data
  • Downloads
Size
DN 100 (4")
Flange
CF-F (metric threads)
Material
Stainless steel
Actuator
Pneumatic: double acting
Position Indication Signal
Visual (Mechanical), 80° C
Solenoid
No
Pressure Min.
XHV
Pressure Max.
1.0 bar (abs)
Conductance
1400 ls⁻¹
Differential Pressure on Plate
≤ 1 bar
Differential Pressure at opening
≤ 0.5 bar
Cylinder volume
1.7 l
Max. compressed air pressure
8 bar / 116 psi
Min. compressed air pressure
4 bar / 58 psi
Max. temperature position indicator
≤ 80 °C (Option: 200 °C)
Weight
36 kg / 79.37 lbs
Max. Temperature Actuator
≤ 200 °C
Max. temperature valve body
≤ 300°C
Add-Ons for Your Product
Valve
Position indicator
Actuator

47.2 XHV RF All-Metal Gate Valve 47240-CE24 2D Dimension Drawing

PDF 191.63 KB

47.2 XHV RF All-Metal Gate Valve 47240-CE24 3D CAD File

ZIP 1.91 MB

Spare parts

Please specify your spare part need at the end of your selection process, on the next page.
