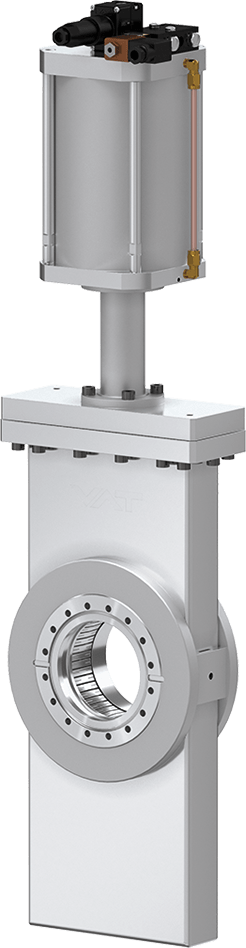

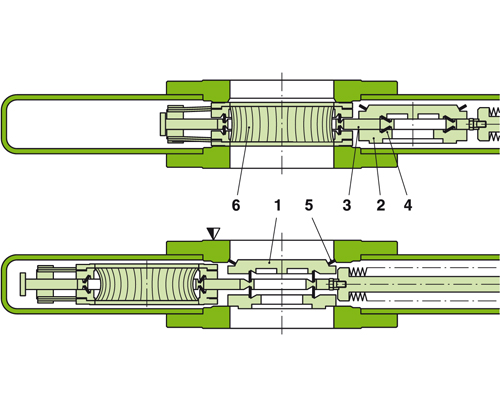

47.2 XHV RF All-Metal Gate Valve

  • 47.2 - 47236-CE24
  • 47.2 XHV RF All-Metal Gate Valve
47.2 - 47236-CE24
47.2 XHV RF All-Metal Gate Valve
View dimensions

Series

47.2 XHV RF All-Metal Gate Valve

Article number
47236-CE24
XHV to 2 bar (abs)

Reliable sector isolation for storage rings or microwave transmission lines (DN 40 - 160)

  • Technical data
  • Downloads
Size
DN 63 (2 ½")
Flange
CF-F (metric threads)
Material
Stainless steel
Actuator
Pneumatic: double acting
Position indication signal
Visual (Mechanical), 80° C
Solenoid
No
Pressure min.
XHV
Pressure max.
1.0 bar (abs)
Conductance
400 ls⁻¹
Cylinder volume
0.7 l
Differential pressure on plate
≤ 1 bar
Differential pressure at opening
≤ 0.5 bar
Max. compressed air pressure
8 bar / 116 psi
Min. compressed air pressure
4 bar / 58 psi
Max. temperature position indicator
≤ 80 °C (Option: 200 °C)
Weight
21 kg / 46.3 lbs
Max. temperature actuator
≤ 200 °C
Max. temperature valve body
≤ 300°C
Cylinder volume
0.7 l
Max. compressed air pressure
8 bar / 116 psi
Min. compressed air pressure
4 bar / 58 psi
Max. temperature position indicator
≤ 80 °C (Option: 200 °C)
Weight
21 kg / 46.3 lbs
Max. temperature actuator
≤ 200 °C
Max. temperature valve body
≤ 300°C
