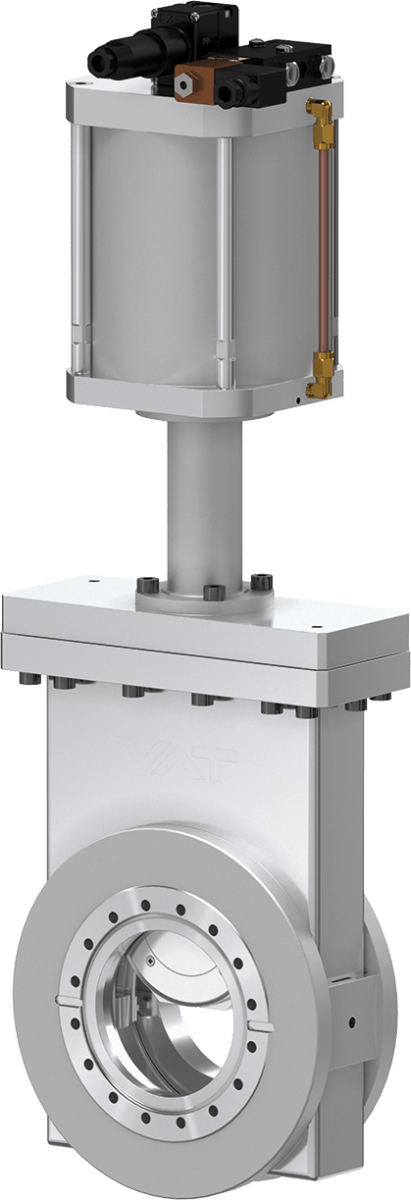

48.1 XHV All-Metal Gate Valve

  • 48.1 - 48146-CE44
  • 48.1 - XHV All-Metal Gate Valve
48.1 - 48146-CE44
48.1 - XHV All-Metal Gate Valve
View dimensions

Series

48.1 XHV All-Metal Gate Valve

Article number
48146-CE44
XHV to 2 bar (abs)

For High Temperatures (DN 16, 40, 200, 250, 320)

  • Technical data
  • Downloads
Size
DN 200 (8")
Flange
CF-F (metric threads)
Material
Stainless steel
Actuator
Pneumatic: double acting
Position Indication Signal
Visual (Mechanical), 80° C
Solenoid
Yes
Pressure Min.
XHV
Pressure Max.
2.0 bar (abs)
Conductance
6900 ls⁻¹
Differential Pressure on Plate
≤ 2 bar
Differential Pressure at opening
≤ 0.5 bar
Cylinder volume
8.3 l
Max. compressed air pressure
8 bar / 116 psi
Min. compressed air pressure
4 bar / 58 psi
Max. temperature position indicator
≤ 80 °C (Option: 200 °C)
Close open time
15 s
Weight
84 kg / 185.19 lbs
Max. Temperature Actuator
≤ 200 °C
Max. temperature valve body
≤ 300°C
Add-Ons for Your Product
Valve
Position indicator
Actuator
