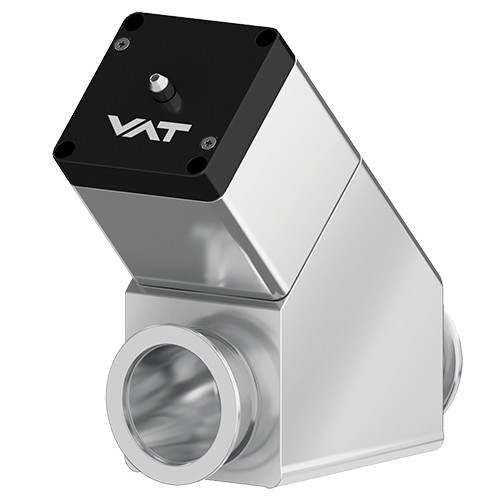

24.5 Inline Valve

  • 24.5 - 24532-KE22
  • 24.5 - Inline Valve
24.5 - 24532-KE22
24.5 - Inline Valve
View dimensions

Series

24.5 Inline Valve

Article number
24532-KE22
1 × 10-7 mbar to 5 bar (abs)

Uncompromised Reliability for Large Volume Flows

  • Technical data
  • Downloads
Size
DN 40 (1 ½")
Flange
ISO-KF
Material
Stainless steel
Actuator
Pneumatic: single acting with opening spring (NO)
Position Indication Signal
Yes
Solenoid
No
Pressure Min.
1 × 10-7 mbar
Pressure Max.
5.0 bar (abs)
Conductance
45 ls⁻¹
Differential Pressure on Plate
≤ 5 bar
Differential Pressure at opening
≤ 1 bar
Cylinder volume
0.04 l
Max. compressed air pressure
8 bar / 116 psi
Min. compressed air pressure
4 bar / 58 psi
Max. temperature position indicator
≤ 80 °C
Close open time
0.6 s
Weight
1.4 kg / 3.09 lbs
Max. Temperature Actuator
≤ 120 °C
Max. temperature valve body
≤ 150 °C
