Series

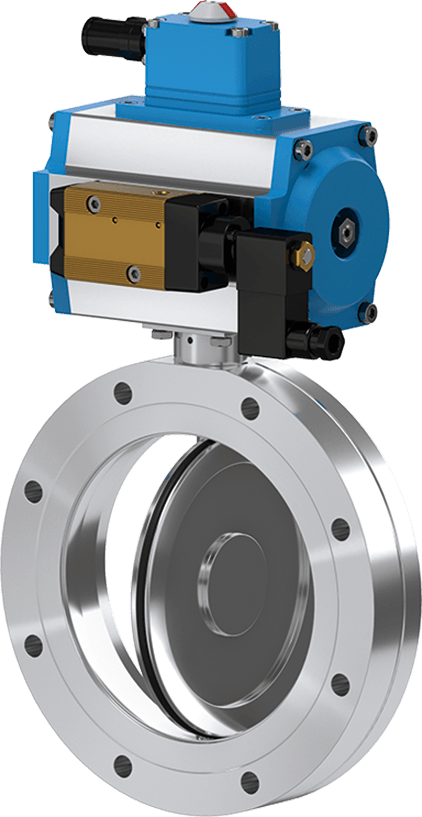

21.0 Butterfly Valve

  • 21044-PE44
View dimensions

Series

21.0 Butterfly Valve

Article number
21044-PE44
1 × 10-8 mbar to 1.3 bar (abs)

Reliable Vacuum Isolation in a Compact Design

  • Technical data
  • Downloads
Size
DN 160 (6")
Flange
ISO-F
Material
Stainless steel
Actuator
Pneumatic: double acting
Position Indication Signal
Yes
Solenoid
Yes
Pressure Min.
1 × 10-8 mbar
Pressure Max.
1.2 bar (abs)
Conductance
3400 ls⁻¹
Differential Pressure on Plate
≤ 4 bar
Differential Pressure at opening
≤ 4 bar
Min. compressed air pressure
4 bar / 58 psi
Max. compressed air pressure
8 bar / 116 psi
Cylinder volume
0 l
Close open time
0.55 s / 0.32 s
Max. temperature valve body
≤ 150 °C
Max. Temperature Actuator
≤ 100 °C
Max. temperature position indicator
≤ 80 °C
Max. temperature solenoid
≤ 50 °C
Weight
10 kg / 22.05 lbs
