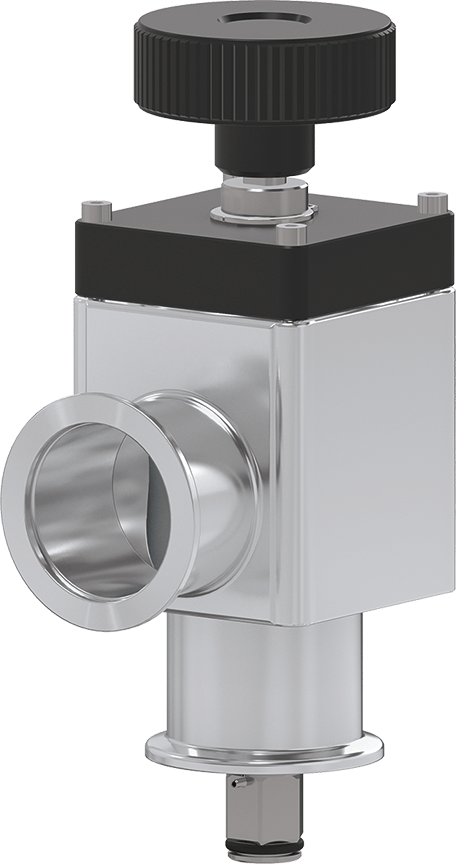

Name: 23.0 - 23028-KEPS
Brand: VAT
SKU: 23028-KEPS

Size

DN 25 (1")

Flange

ISO-KF

Material

Stainless steel

Actuator

Manual

Position Indication Signal

Solenoid

Pressure Min.

1 × 10^-⁸ mbar

Pressure Max.

2.5 bar

Conductance

1.8 ls⁻¹

Differential Pressure on Plate

≤ 1 bar

Differential Pressure at opening

≤ 0.005 bar

Weight

0.36 kg / 0.79 lbs

Max. Temperature Actuator

≤ 50 °C

Max. temperature valve body

≤ 120 °C

Please specify your spare part need at the end of your selection process, on the next page.

23.0 Valve Mechanism and Pump-Out System
