Series

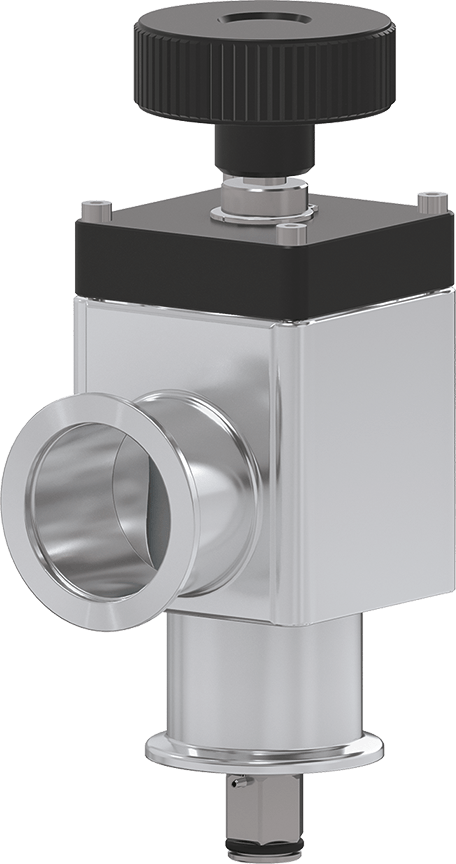

23.0 Valve Mechanism and Pump-Out System

  • 23024-KEPS
View dimensions

Series

23.0 Valve Mechanism and Pump-Out System

Article number
23024-KEPS
1 × 10-8 mbar to 1 bar (abs)

For Infrequently Pumped Vacuum Vessels or Gas Isolation

  • Technical data
  • Downloads
Size
DN 16 (⅝")
Flange
ISO-KF
Material
Aluminum
Actuator
Manual
Position Indication Signal
No
Solenoid
No
Pressure Min.
1 × 10-8 mbar
Pressure Max.
2.5 bar
Differential Pressure on Plate
≤ 1 bar
Differential Pressure at opening
≤ 0.005 bar
Conductance
1.8 ls⁻¹
Min. compressed air pressure
5 bar / 73 psi
Max. compressed air pressure
7 bar / 102 psi
Max. temperature valve body
≤ 120 °C
Max. Temperature Actuator
≤ 50 °C
Weight
0.36 kg / 0.79 lbs

23.0 Valve Mechanism and Pump-Out System 23024-KEPS 2D Dimension Drawing

PDF 119 KB Download

23.0 Valve Mechanism and Pump-Out System 23024-KEPS Manual

PDF 655 KB Download

23.0 Valve Mechanism and Pump-Out System 23024-KEPS Product Datasheet

PDF 17 KB Download
