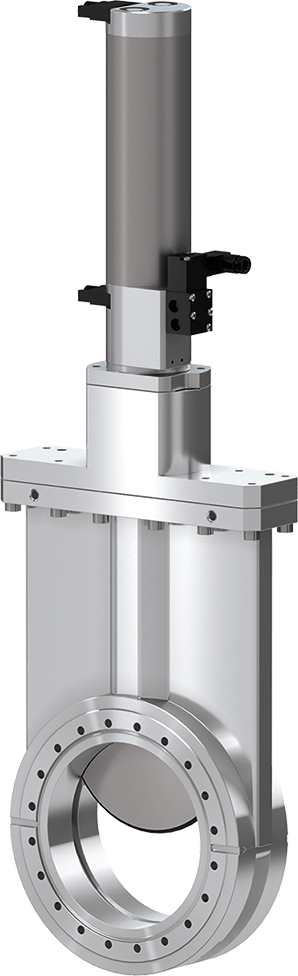

15.2 UHV Isolation Gate Valve

View dimensions

Series

15.2 UHV Isolation Gate Valve

Article number

15244-PE44

1 × 10^-10 mbar to 1 bar (abs)

Exceptionally Low Shock and Particle Count

Technical data
Downloads

Size

DN 160 (6")

Flange

ISO-F

Material

Stainless steel

Actuator

Pneumatic: double acting

Position Indication Signal

Yes

Solenoid

Yes

Pressure Min.

1 × 10^-¹⁰ mbar

Pressure Max.

1.0 bar (abs)

Conductance

6000 ls⁻¹

Differential Pressure on Plate

≤ 1.2 bar

Differential Pressure at opening

≤ 0.03 bar

Min. compressed air pressure

4 bar / 58 psi

Max. compressed air pressure

7 bar / 102 psi

Cylinder volume

0.46 l

Close open time

3.1 s

Max. temperature valve body

≤ 250 °C

Max. Temperature Actuator

≤ 200 °C

Max. temperature position indicator

≤ 80 °C

Max. temperature solenoid

≤ 50 °C

Weight

22 kg / 48.5 lbs

Add-Ons for Your Product

Valve

Customer specific flange

Additional ports

Gate

With fixations for foils

With window

Alternative sealing materials

Actuator

Increased bake-out temperature on pneumatic actuator up to 140 °C

Different solenoid specification

Position indicator

Double position indicator for "open" and "close"
