77.1 UHV Fast Closing Shutter

  • 77.1 - 77140-CE44
  • 77.1 UHV Fast Closing Shutter

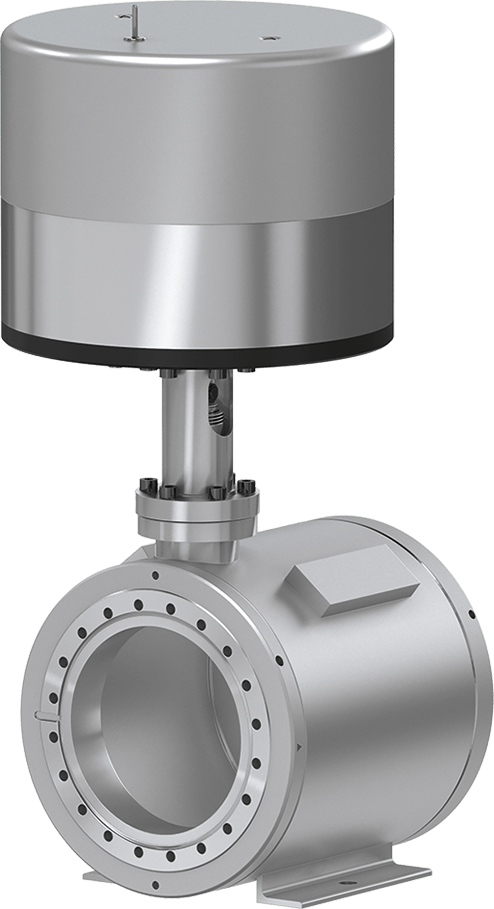

77.1 - 77140-CE44
77.1 UHV Fast Closing Shutter
View dimensions

Series

77.1 UHV Fast Closing Shutter

Article number
77140-CE44
UHV to 1.2 bar (abs)

Protection of accelerators and storage rings from air inrush (flap shutter design)

  • Technical data
  • Downloads
Size
DN 100 (4")
Flange
CF-F (metric threads)
Material
Stainless steel
Actuator
Pneumatic: double acting
Position indication signal
Yes
Solenoid
Yes
Pressure min.
1 × 10-10 mbar
Pressure max.
1.2 bar (abs)
Conductance
700 ls⁻¹
Differential pressure on plate
≤ 1.2 bar
Differential pressure at opening
≤ 1 bar
Max. compressed air pressure
8 bar / 116 psi
Min. compressed air pressure
5 bar / 73 psi
Max. temperature position indicator
≤ 80 °C
Close open time
0.015 s / 7 s
Weight
29 kg / 63.93 lbs
Max. temperature actuator
≤ 50 °C
Max. temperature valve body
≤ 200 °C
Add-Ons for Your Product
Valve

77.1 UHV Fast Closing Shutter 77140-CE44 2D Dimension Drawing

PDF 235.53 KB

77.1 UHV Fast Closing Shutter 77140-CE44 Manual

PDF 790.09 KB

77.1 UHV Fast Closing Shutter 77140-CE44 Product Datasheet

PDF 112.80 KB

771_UHV_Fast_Closing_Shutter_77140_CE44_3D_CAD_File-433510.zip

ZIP 235.12 KB
