Series

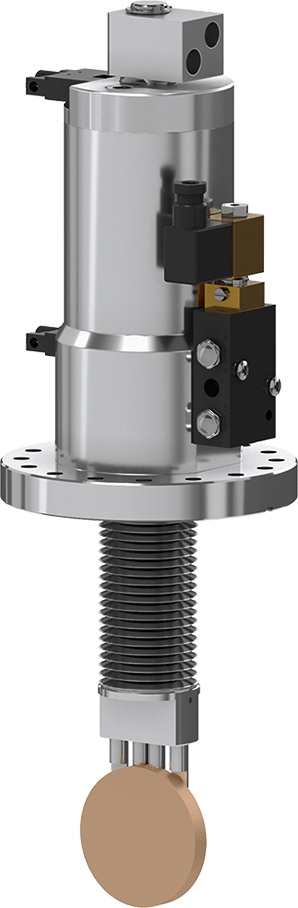

79.3 UHV Beam Stopper Insert

  • 79346-CE44
View dimensions

Series

79.3 UHV Beam Stopper Insert

Article number
79346-CE44
UHV to 1 bar (abs)

For Particle Accelerators, Synchrotrons and Other Beam Sources

  • Technical data
  • Downloads
Size
DN 200 (8")
Flange
CF-F
Material
Stainless steel
Actuator
Pneumatic: double acting
Position Indication Signal
Visual (Mechanical), 80° C
Solenoid
Yes
Pressure Min.
XHV
Pressure Max.
1.0 bar (abs)
Min. compressed air pressure
4 bar / 58 psi
Max. compressed air pressure
8 bar / 116 psi
Cylinder volume
0.72 l
Close open time
3 s
Max. Temperature Actuator
≤ 80 °C
Max. temperature position indicator
≤ 80 °C
Weight
22 kg / 48.5 lbs
Add-Ons for Your Product
Valve
Position indicator

79.3 UHV Beam Stopper Insert 79346-CE44 2D Dimension Drawing

PDF 278 KB Download
