Series

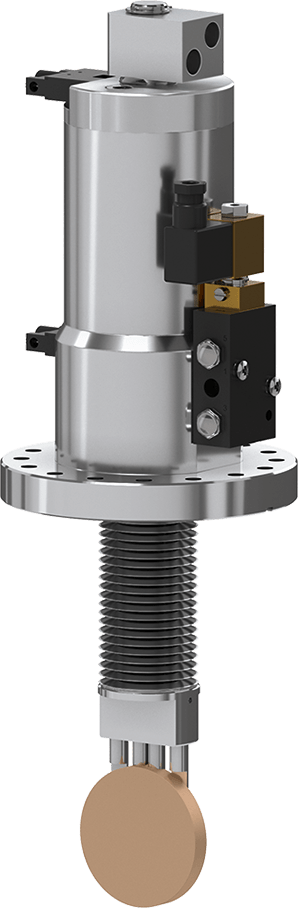

79.3 UHV Beam Stopper Insert

  • 79.3 - 79344-CE24
  • 79.3 UHV Beam Stopper Insert
79.3 - 79344-CE24
79.3 UHV Beam Stopper Insert
View dimensions

Series

79.3 UHV Beam Stopper Insert

Article number
79344-CE24
UHV to 1 bar (abs)

For particle accelerators, synchrotrons and other beam sources

  • Technical data
  • Downloads
Size
DN 160 (6")
Flange
CF-F
Material
Stainless steel
Actuator
Pneumatic: double acting
Position indication signal
Visual (Mechanical), 80° C
Solenoid
No
Pressure min.
XHV
Pressure max.
1.0 bar (abs)
Cylinder volume
0.49 l
Max. compressed air pressure
8 bar / 116 psi
Min. compressed air pressure
4 bar / 58 psi
Max. temperature position indicator
≤ 80 °C
Close open time
3 s
Weight
11 kg / 24.25 lbs
Max. temperature actuator
≤ 80 °C
