Series

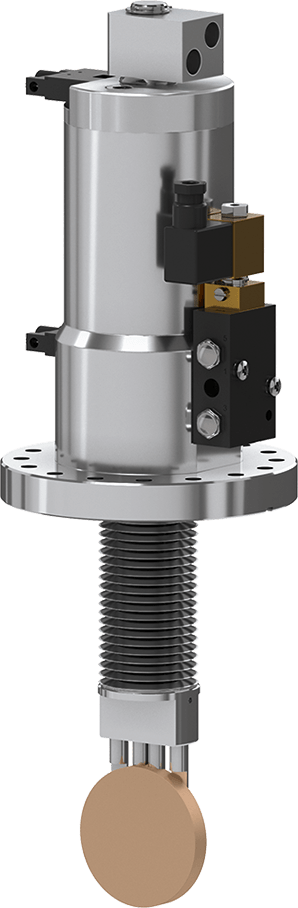

79.3 UHV Beam Stopper Insert

  • 79.3 - 79340-CE44
  • 79.3 UHV Beam Stopper Insert
79.3 - 79340-CE44
79.3 UHV Beam Stopper Insert
View dimensions

Series

79.3 UHV Beam Stopper Insert

Article number
79340-CE44
UHV to 1 bar (abs)

For particle accelerators, synchrotrons and other beam sources

  • Technical data
  • Downloads
Size
DN 100 (4")
Flange
CF-F
Material
Stainless steel
Actuator
Pneumatic: double acting
Position indication signal
Visual (Mechanical), 80° C
Solenoid
Yes
Pressure min.
XHV
Pressure max.
1.0 bar (abs)
Cylinder volume
0.33 l
Max. compressed air pressure
8 bar / 116 psi
Min. compressed air pressure
4 bar / 58 psi
Max. temperature position indicator
≤ 80 °C
Close open time
2 s
Weight
7 kg / 15.43 lbs
Max. temperature actuator
≤ 80 °C
Cylinder volume
0.33 l
Max. compressed air pressure
8 bar / 116 psi
Min. compressed air pressure
4 bar / 58 psi
Max. temperature position indicator
≤ 80 °C
Close open time
2 s
Weight
7 kg / 15.43 lbs
Max. temperature actuator
≤ 80 °C
Add-Ons for Your Product
Valve
Position indicator

79.3 UHV Beam Stopper Insert 79340-CE44 Product Datasheet

PDF 126.67 KB

79.3 UHV Beam Stopper Insert 79340-CE44 Manual

PDF 801.21 KB

79.3 UHV Beam Stopper Insert 79340-CE44 2D Dimension Drawing

PDF 246.56 KB

Spare parts

Please specify your spare part need at the end of your selection process, on the next page.

Request for quote
