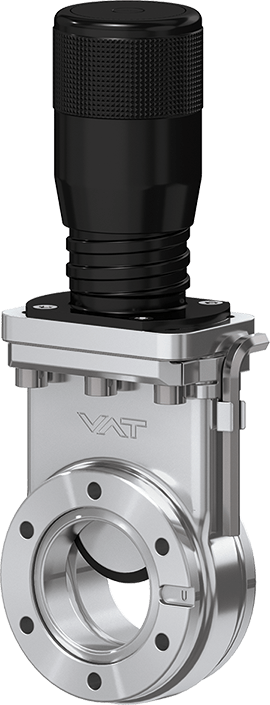

01.0 Mini UHV Gate Valve

  • 01.0 - 01024-KE01
01.0 - 01024-KE01

Series

01.0 Mini UHV Gate Valve

Article number
01024-KE01
1 × 10-10 mbar to 2 bar (abs)

The general purpose isolation valve for demanding applications

  • Technical data
  • Downloads
Size
DN 16 (⅝")
Flange
ISO-KF
Material
Stainless steel
Actuator
Manual
Position indication signal
No
Solenoid
No
Pressure min.
1 × 10-10 mbar
Pressure max.
2.0 bar (abs)
Conductance
9 ls⁻¹
Differential pressure on plate
≤ 2 bar
Differential pressure at opening
≤ 0.03 bar
Close open time
0.7 s
Weight
1.5 kg / 3.31 lbs
Max. temperature actuator
≤ 250 °C
Max. temperature valve body
≤ 250 °C
Close open time
0.7 s
Weight
1.5 kg / 3.31 lbs
Max. temperature actuator
≤ 250 °C
Max. temperature valve body
≤ 250 °C
Add-Ons for Your Product
Valve
Gate
Actuator
Position indicator

01.0 Mini UHV Gate Valve 01024-KE01 Product Datasheet

PDF 91.21 KB

01.0 Mini UHV Gate Valve 01024-KE01 Manual

PDF 590.80 KB

01.0 Mini UHV Gate Valve 01024-KE01 2D Dimension Drawing

PDF 191.43 KB

010_Mini_UHV_Gate_Valve_01024_KE01_3D_CAD_File-431741.zip

ZIP 344.02 KB
