Series

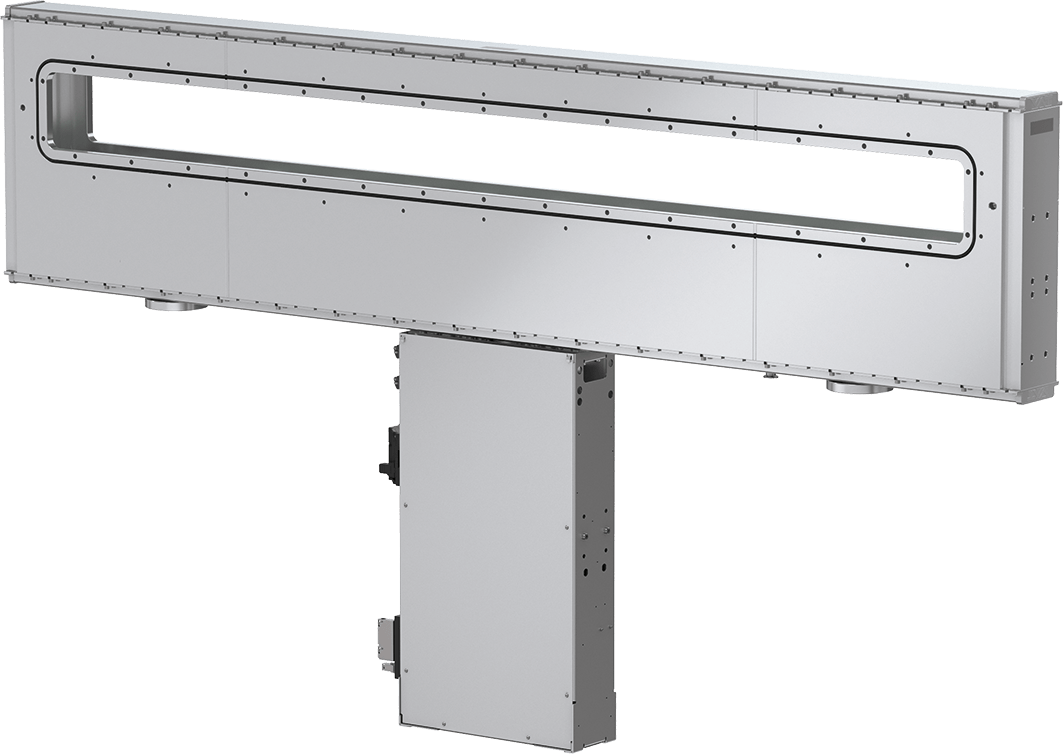

06.1 Large Transfer Valve / Insert with TWINVAT

  • 0610X-AA49
View dimensions

Series

06.1 Large Transfer Valve / Insert with TWINVAT

Article number
0610X-AA49

High Performance for Display Production Systems

  • Technical data
  • Downloads
Flange
Special
Material
Aluminum
Actuator
Pneumatic: double acting
Position Indication Signal
No
Solenoid
No
Pressure Min.
1 × 10-9 mbar
Pressure Max.
1.1 bar (abs)
Conductance
9 ls⁻¹
Differential Pressure on Plate
≤ 1 bar
Differential Pressure at opening
≤ 5 bar
Close open time
≤ 1.0 sec
Max. temperature valve body
≤ 120 °C
Max. Temperature Actuator
≤ 80 °C
Max. temperature position indicator
≤ 80 °C
Weight
14 kg / 31 lbs
Add-Ons for Your Product
Valve
Insert
Gate
Actuator

06.1 Large Transfer Valve / Insert with TWINVAT 0610X-AA49 3D CAD File

ZIP 1 MB Download

06.1 Large Transfer Valve / Insert with TWINVAT 0610X-AA49 2D Dimension Drawing

PDF 231 KB Download

06.1 Large Transfer Valve / Insert with TWINVAT 0610X-AA49 Manual

PDF 1 MB Download

06.1 Large Transfer Valve / Insert with TWINVAT 0610X-AA49 Product Datasheet

PDF 62 KB Download
