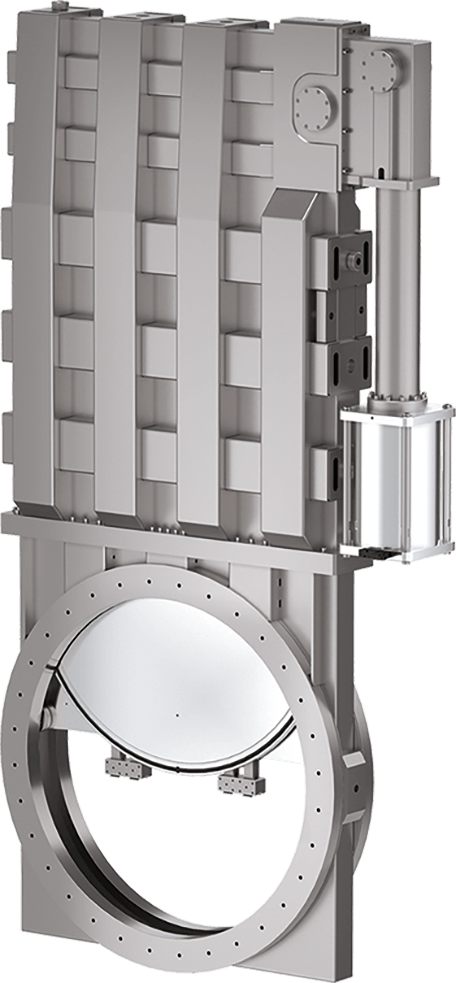

Large HV Gate Valves

Size

DN 400 (16")

Flange

ISO-F

Material

Stainless steel

Actuator

Pneumatic: double acting

Position Indication Signal

Yes

Solenoid

Yes

Pressure Min.

1 × 10^-⁸ mbar

Pressure Max.

1.0 bar (abs)

Conductance

50000 ls⁻¹

Differential Pressure on Plate

≤ 1 bar

Differential Pressure at opening

≤ 0.02 bar

Min. compressed air pressure

5 bar / 73 psi

Max. compressed air pressure

9 bar / 131 psi

Cylinder volume

2.1 l

Close open time

10 s

Max. temperature valve body

≤ 150 °C

Max. Temperature Actuator

≤ 80 °C

Max. temperature position indicator

≤ 80 °C

Max. temperature solenoid

≤ 50 °C

Weight

160 kg / 352.74 lbs

Add-Ons for Your Product

Valve

Customer specific flange

Valve Stand

Additional ports

Gate

Stainless steel mechanic

With window

Protection ring

Alternative sealing materials

Actuator

Lockout/tagout

Valve plate in third position defineable

Different solenoid specification

Position indicator

Mechanical position indicator

Temperature Management

Heating and cooling options on request

Heat protection shield
