Series

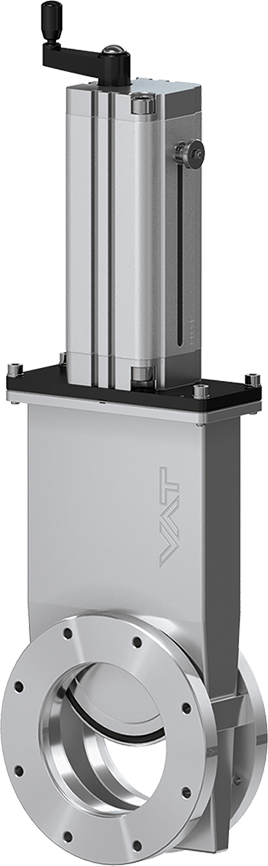

09.1 HV Gate Valve with Wedge Design

  • 09144-PE08
View dimensions

Series

09.1 HV Gate Valve with Wedge Design

Article number
09144-PE08
1 × 10-8 mbar to 1.2 bar (abs)

The flexible Solution for Isolation of Gas-Streams with High By-Product Content

  • Technical data
  • Downloads
Size
DN 160 (6")
Flange
ISO-F
Material
Stainless steel
Actuator
Manual
Position Indication Signal
Yes
Solenoid
No
Pressure Min.
1 × 10-8 mbar
Pressure Max.
1.2 bar (abs)
Conductance
5000 ls⁻¹
Differential Pressure on Plate
≤ 1.2 bar
Differential Pressure at opening
≤ 1 bar
Max. temperature valve body
≤ 150 °C
Max. Temperature Actuator
≤ 100 °C
Max. temperature position indicator
≤ 60 °C
Weight
15.1 kg / 33.29 lbs
Add-Ons for Your Product
Valve
Gate
Actuator
Temperature Management

09.1 HV Gate Valve with Wedge Design 09144-PE08 3D CAD File

ZIP 504 KB Download

09.1 HV Gate Valve with Wedge Design 09144-PE08 2D Dimension Drawing

PDF 220 KB Download

09.1 HV Gate Valve with Wedge Design 09144-PE08 Manual

PDF 329 KB Download

09.1 HV Gate Valve with Wedge Design 09144-PE08 Product Datasheet

PDF 76 KB Download
