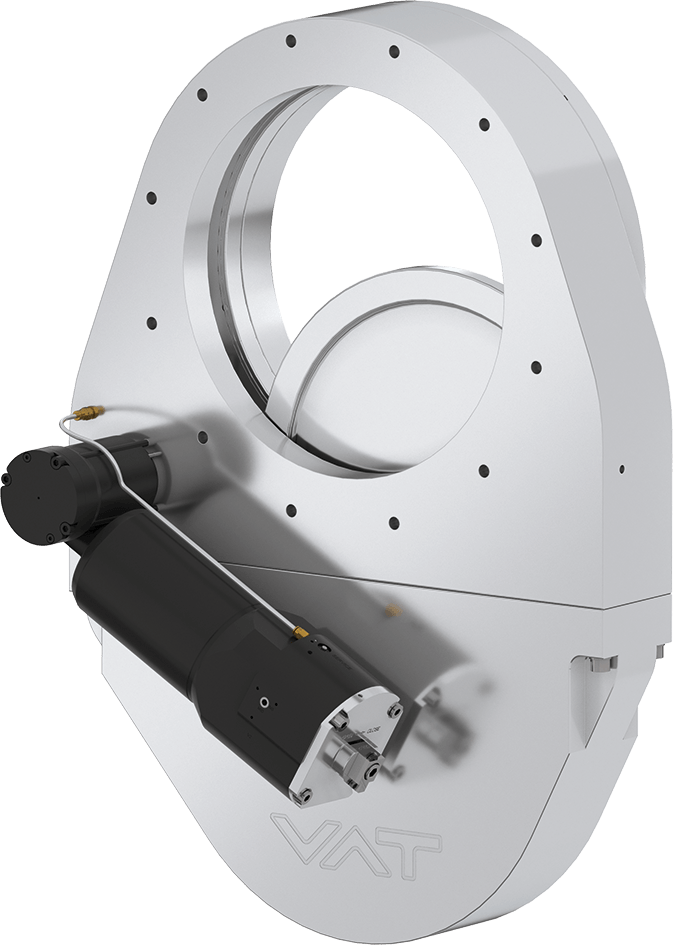

16.2 HV Pendulum Isolation Valve

  • 16.2 - 16252-PA28
  • 16.2 HV Pendulum Isolation Valve
16.2 - 16252-PA28
16.2 HV Pendulum Isolation Valve
View dimensions

Series

16.2 HV Pendulum Isolation Valve

Article number
16252-PA28
1 × 10-8 mbar to 1.2 bar (abs)

The standard for isolation requirements in evaporator and sputter applications

  • Technical data
  • Downloads
Size
DN 400 (16")
Flange
ISO-F
Material
Aluminum
Actuator
3-position pneumatic with closing spring (NC)
Position Indication Signal
Yes
Solenoid
No
Pressure Min.
1 × 10-8 mbar
Pressure Max.
1.2 bar (abs)
Conductance
61000 ls⁻¹
Differential Pressure on Plate
≤ 1.2 bar
Differential Pressure at opening
≤ 0.005 bar
Conductance DO NOT USE
69
Cylinder volume
0.85 l
Max. compressed air pressure
7 bar / 102 psi
Min. compressed air pressure
5 bar / 73 psi
Max. temperature position indicator
≤ 80 °C
Weight
76 kg / 167.6 lbs
Max. Temperature Actuator
≤ 80 °C
Max. temperature valve body
≤ 120 °C

16.2 HV Pendulum Isolation Valve 16252-PA28 2D Dimension Drawing

PDF 469.21 KB

16.2 HV Pendulum Isolation Valve 16252-PA28 Manual

PDF 476.02 KB

16.2 HV Pendulum Isolation Valve 16252-PA28 Manual

PDF 476.02 KB

16.2 HV Pendulum Isolation Valve 16252-PA28 Product Datasheet

PDF 140.38 KB

16.2 HV Pendulum Isolation Valve 16252-PA28 3D CAD File

ZIP 1.92 MB
