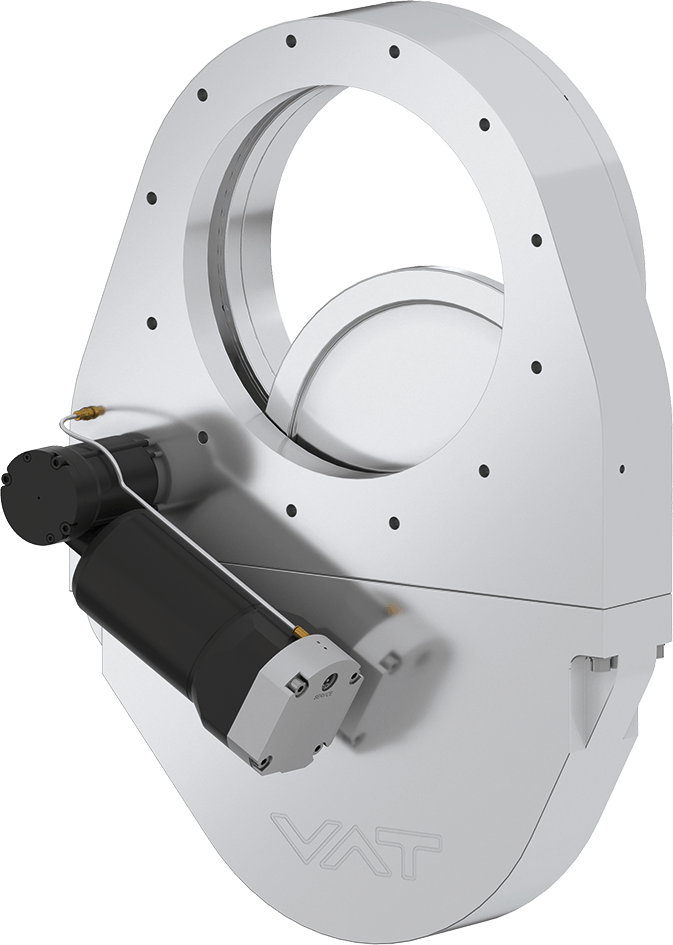

16.2 HV Pendulum Isolation Valve

  • 16.2 - 16248-PA21
  • 16.2 - HV Pendulum Isolation Valve
16.2 - 16248-PA21
16.2 - HV Pendulum Isolation Valve
View dimensions

Series

16.2 HV Pendulum Isolation Valve

Article number
16248-PA21
1 × 10-8 mbar to 1.2 bar (abs)

The Standard for Isolation Requirements in Evaporator and Sputter Applications

  • Technical data
  • Downloads
Size
DN 250 (10")
Flange
ISO-F
Material
Aluminum
Actuator
Pneumatic: single acting with closing spring (NC)
Position Indication Signal
Yes
Solenoid
No
Pressure Min.
1 × 10-8 mbar
Pressure Max.
1.2 bar (abs)
Conductance
21700 ls⁻¹
Differential Pressure on Plate
≤ 1.2 bar
Differential Pressure at opening
≤ 0.005 bar
Max. temperature solenoid
≤ 50 °C
Cylinder volume
0.35 l
Max. compressed air pressure
7 bar / 102 psi
Min. compressed air pressure
5 bar / 73 psi
Max. temperature position indicator
≤ 80 °C
Close open time
4 s
Weight
30 kg / 66.14 lbs
Max. Temperature Actuator
≤ 80 °C
Max. temperature valve body
≤ 120 °C

16.2 HV Pendulum Isolation Valve 16248-PA21 2D Dimension Drawing

PDF 430.36 KB

16.2 HV Pendulum Isolation Valve 16248-PA21 Manual

PDF 476.02 KB

16.2 HV Pendulum Isolation Valve 16248-PA21 Manual

PDF 476.02 KB

16.2 HV Pendulum Isolation Valve 16248-PA21 Product Datasheet

PDF 118.20 KB

16.2 HV Pendulum Isolation Valve 16248-PA21 3D CAD File

ZIP 1.98 MB
