Name: 26.5 - 26524-KE61
Brand: VAT
SKU: 26524-KE61

Size

DN 16 (⅝")

Flange

ISO-KF

Material

Stainless steel

Actuator

Electromagnetic: single acting with closing spring (NC)

Position indication signal

Yes

Solenoid

Pressure min.

1 × 10^-⁸ mbar

Pressure max.

2.0 bar (abs)

Conductance

5 ls⁻¹

Differential pressure on plate

≤ 2 bar

Differential pressure at opening

≤ 1 bar

Close open time

0.20 s

Weight

1.3 kg / 2.87 lbs

Max. temperature actuator

≤ 50 °C

Max. temperature valve body

≤ 50 °C

Sealing kit vacuum 26.4, 26.5 DN16 ID: 522634

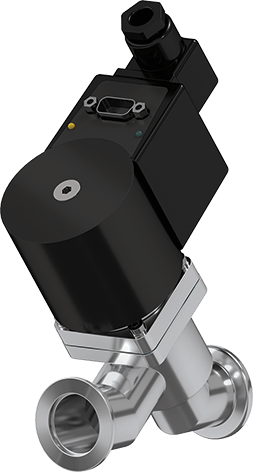

26.5 HV Inline Valve
