Series

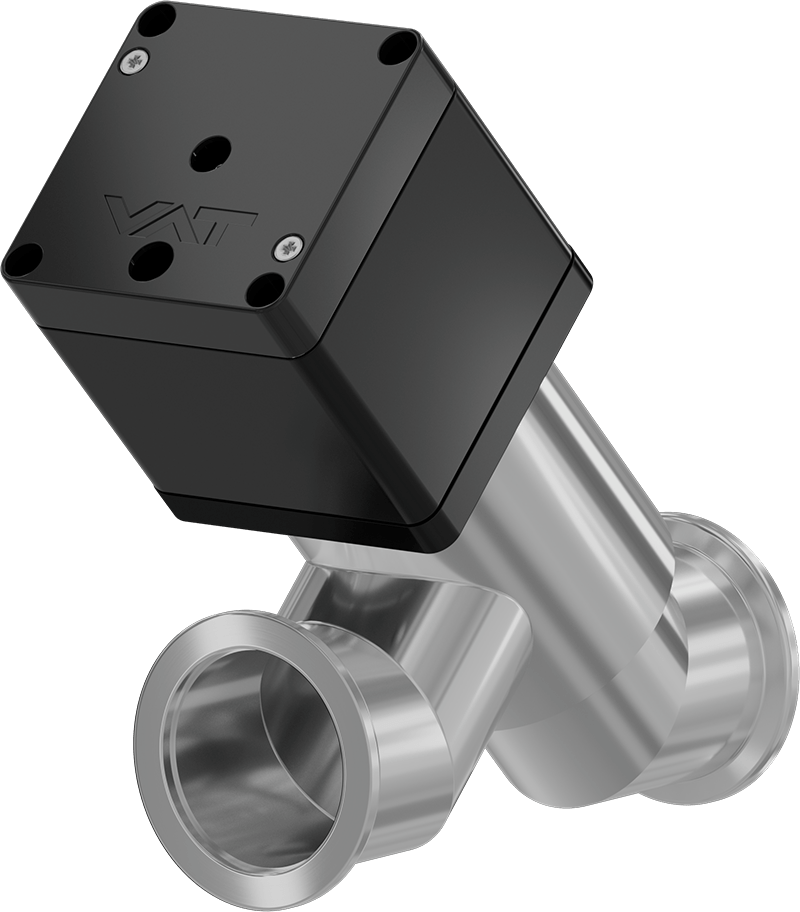

29.1 HV Inline Valve with Soft-Pump Function

  • 29134-KE11

Series

29.1 HV Inline Valve with Soft-Pump Function

Article number
29134-KE11
1 × 10-8 mbar to 1.2 bar (abs)

Pumping, Venting Without Turbulence or Pressure Pulses

  • Technical data
  • Downloads
Size
DN 50 (2")
Flange
ISO-KF
Material
Stainless steel
Actuator
Pneumatic, single acting with closing spring (NC)
Position Indication Signal
No
Solenoid
No
Pressure Min.
1 × 10-8 mbar
Pressure Max.
1.2 bar (abs)
Conductance
80 ls⁻¹
Differential Pressure on Plate
≤ 1.2 bar
Differential Pressure at opening
≤ 1 bar
Min. compressed air pressure
4 bar / 58 psi
Max. compressed air pressure
8 bar / 116 psi
Cylinder volume
0.047 l
Closing time
≤ 0.65 s
Max. temperature valve body
≤ 150 °C
Max. Temperature Actuator
≤ 120 °C
Weight
2.5 kg / 5.51 lbs
Add-Ons for Your Product
Valve
Gate
Actuator
Position indicator

29.1 HV Inline Valve with Soft-Pump Function 29134-KE11 3D CAD File

ZIP 189 KB Download

29.1 HV Inline Valve with Soft-Pump Function 29134-KE11 2D Dimension Drawing

PDF 181 KB Download

29.1 HV Inline Valve with Soft-Pump Function 29134-KE11 Manual

PDF 814 KB Download

29.1 HV Inline Valve with Soft-Pump Function 29134-KE11 Product Datasheet

PDF 21 KB Download
