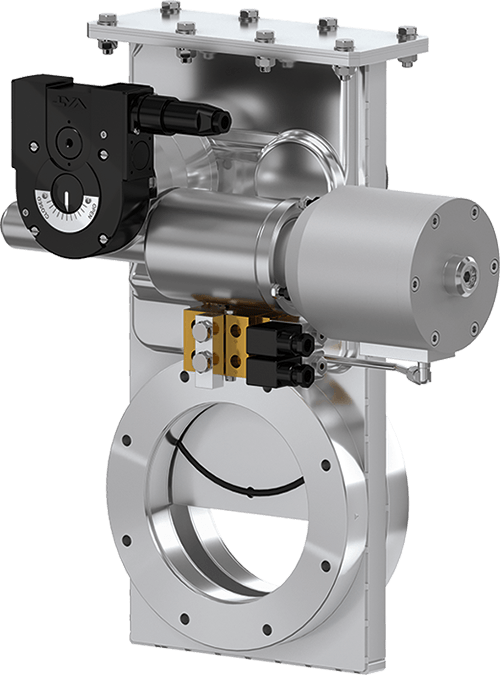

14.0 HV Gate Valve

  • 14.0 - 14052-PE48
  • 14.0 HV Gate Valve
14.0 - 14052-PE48
14.0 HV Gate Valve
View dimensions

Series

14.0 HV Gate Valve

Article number
14052-PE48

For standard high cycle vacuum isolation

  • Technical data
  • Downloads
Size
DN 400 (16")
Flange
ISO-F (double number of holes)
Material
Stainless steel
Actuator
3-position pneumatic: double acting
Position Indication Signal
Yes
Solenoid
Yes
Pressure Min.
1 × 10-8 mbar
Pressure Max.
1.2 bar (abs)
Conductance
52’050 ls-1
Differential Pressure on Plate
≤ 1.2 bar
Differential Pressure at opening
≤ 30 mbar
Max. temperature solenoid
≤ 50 °C
Max. compressed air pressure
7 bar / 102 psi
Min. compressed air pressure
4 bar / 58 psi
Max. temperature position indicator
≤ 80 °C
Close open time
10 s
Weight
164.2 kg / 362 lbs
Max. Temperature Actuator
≤ 50 °C
Max. temperature valve body
≤ 150 °C
