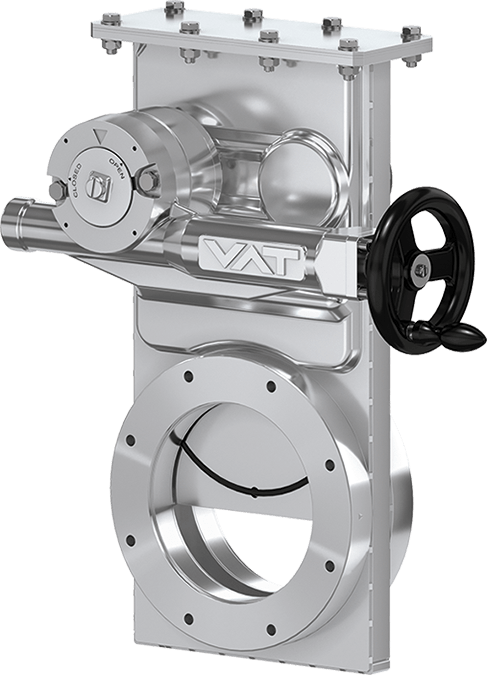

Name: 14.0 - 14050-JE08
Brand: VAT
SKU: 14050-JE08

Technical data
Downloads

Size

DN 320 (12")

Flange

JIS

Material

Stainless steel

Actuator

Manual

Position Indication Signal

No

Solenoid

No

Pressure Min.

1 × 10^-⁸ mbar

Pressure Max.

1.2 bar (abs)

Conductance

30000 ls⁻¹

Differential Pressure on Plate

≤ 1.2 bar

Differential Pressure at opening

≤ 0.03 bar

Weight

100 kg / 220.46 lbs

Max. Temperature Actuator

≤ 80 °C

Max. temperature valve body

≤ 150 °C

Add-Ons for Your Product

Valve

Customer specific flange

Additional ports

Intermediate pump port

Direct mounting option

Position indicator

Double position indicator for \"open\" and \"close\

Temperature Management

Heating and cooling options on request

Temperature control with thermostat

Gate

Alternative sealing materials

Actuator

Different solenoid specification

Different mounting positons defineable

Crank bolt 14.0, 17.2, 64.0, 64.2 DN250, DN320 ID: 205049

Addition to sealing kit vacuum 14.0, 17.2, 17.6 DN320 ID: 98444-R1

Sealing kit vacuum 14.0, 64.0, 64.2 DN320, DN350 ID: 98474-R1
