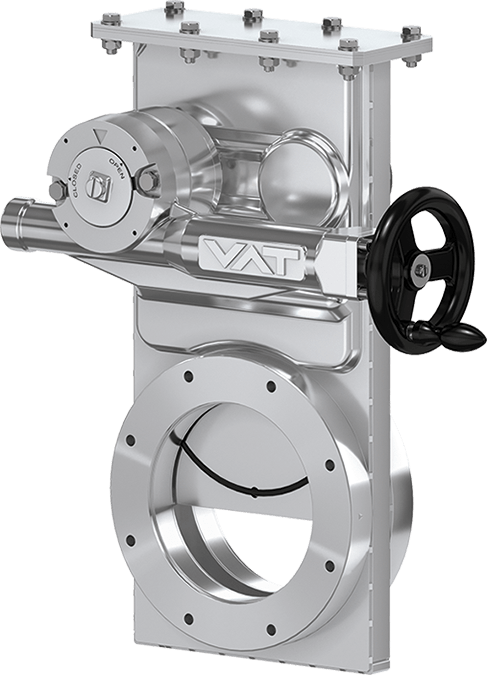

HV Gate Valve - VAT Valves

Size

DN 160 (6")

Flange

JIS

Material

Stainless steel

Actuator

Manual

Position Indication Signal

Solenoid

Pressure Min.

1 × 10^-⁸ mbar

Pressure Max.

2.0 bar (abs)

Conductance

5000 ls⁻¹

Differential Pressure on Plate

≤ 2 bar

Differential Pressure at opening

≤ 0.03 bar

Max. temperature valve body

≤ 150 °C

Max. Temperature Actuator

≤ 80 °C

Weight

25 kg / 55.12 lbs

Add-Ons for Your Product

Valve

Customer specific flange

Direct mounting option

Additional ports

Intermediate pump port

Gate

Alternative sealing materials

Actuator

Different mounting positons defineable

Different solenoid specification

Position indicator

Double position indicator for "open" and "close"

Temperature Management

Heating and cooling options on request

Temperature control with thermostat

Series

14.0 HV Gate Valve
