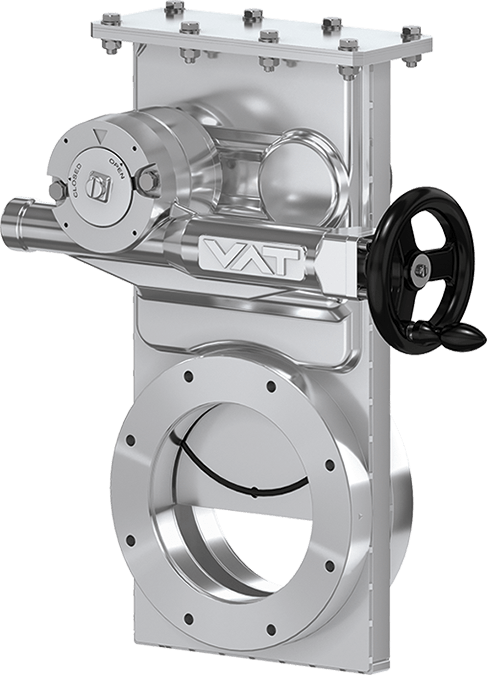

Name: 14.0 - 14040-PE01
Brand: VAT
SKU: 14040-PE01

Technical data
Downloads

Size

DN 100 (4")

Flange

ISO-F

Material

Stainless steel

Actuator

Manual

Position Indication Signal

No

Solenoid

No

Pressure Min.

1 × 10^-⁸ mbar

Pressure Max.

2.0 bar (abs)

Conductance

1700 ls⁻¹

Differential Pressure on Plate

≤ 2 bar

Differential Pressure at opening

≤ 0.03 bar

Weight

15 kg / 33.07 lbs

Max. Temperature Actuator

≤ 80 °C

Max. temperature valve body

≤ 150 °C

Add-Ons for Your Product

Valve

Customer specific flange

Additional ports

Direct mounting option

Intermediate pump port

Gate

Alternative sealing materials

Actuator

Different mounting positons defineable

Temperature Management

Heating and cooling options on request

Temperature control with thermostat

Position indicator

Double position indicator for \"open\" and \"close\

Crank bolt 14.0, 17.2, 64.0, 64.2 DN63, DN80, DN100, DN160, DN200 ID: 205048

Mechanical kit 14.0, 17.2, 64.0 DN100 ID: 94842-R1

Sealing Kit vacuum 14.0, 64.0, 64.2 DN100 ID: 97446-R1
