Series

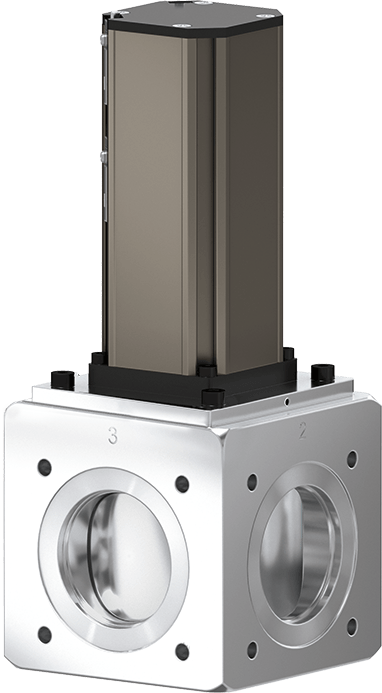

25.2 HV Cylinder Valve (3/2 Way Version)

View dimensions

Series

25.2 HV Cylinder Valve (3/2 Way Version)

Article number

25228-EA24

1 × 10^-8 mbar to 3 bar (abs)

Maximum Conductance for Harsh Process Environments

Technical data
Downloads

Size

DN 25 (1")

Flange

ISO-KF (claw)

Material

Aluminum

Actuator

Pneumatic: double acting

Position Indication Signal

Yes

Solenoid

Pressure Min.

1 × 10^-⁸ mbar

Pressure Max.

3.0 bar (abs)

Conductance

8 ls⁻¹

Differential Pressure on Plate

≤ 3 bar

Differential Pressure at opening

≤ 1.2 bar

Min. compressed air pressure

4 bar / 58 psi

Max. compressed air pressure

8 bar / 116 psi

Cylinder volume

0.032 l

Close open time

0.6 s

Max. temperature valve body

≤ 120 °C

Max. Temperature Actuator

≤ 120 °C

Max. temperature position indicator

≤ 80 °C

Weight

1.4 kg / 3.09 lbs

Add-Ons for Your Product

Valve

Customer specific flange

Gate

Alternative sealing materials

Actuator

Common connector for position indicator and solenoid

One-touch pneumatic fittings

Different solenoid specification

Temperature Management

Heating cartridge for DN40
