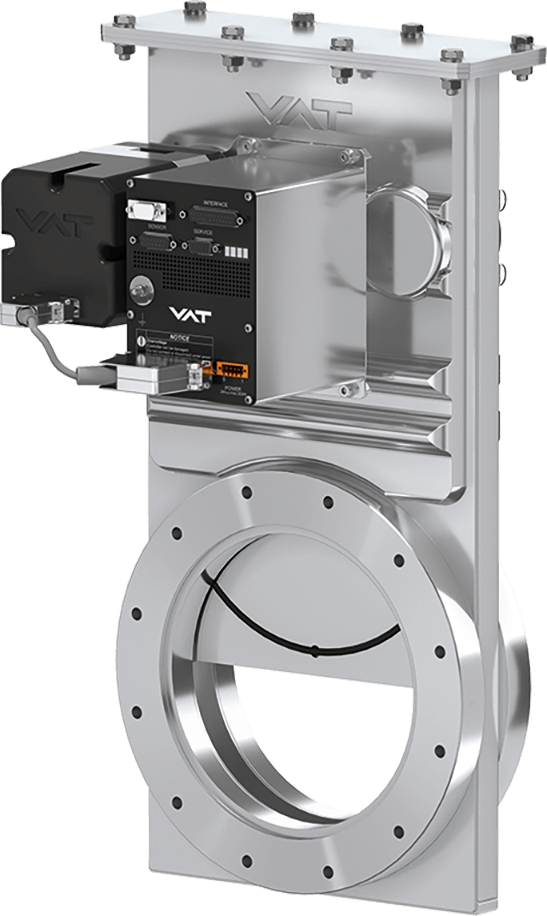

64.2 HV Control Gate Valve

  • 64.2 - 64252-JEGG
  • 64.2 HV Control Gate Valve
64.2 - 64252-JEGG
64.2 HV Control Gate Valve
View dimensions

Series

64.2 HV Control Gate Valve

Article number
64252-JEGG
1 × 10-8 mbar to 2 bar (abs)

For high cycle vacuum control and isolation

  • Technical data
  • Downloads
Size
DN 400 (16")
Flange
JIS
Material
Stainless steel
Actuator
Stepper motor
Controller interface + sensors
RS232 interface / 1 sensors
Controller configuration
Basic Version
Position indication signal
Visual (mechanical and on controller)
Solenoid
No
Pressure min.
1 × 10-8 mbar
Pressure max.
1.2 bar (abs)
Conductance
50000 ls⁻¹
Differential pressure on plate
≤ 1.2 bar
Differential pressure at opening
≤ 30 mbar
Close to open
10 s
Open to close
10 s
Pressure control (throttling) default speed
9 s
Weight
155 kg / 341.71 lbs
Max. temperature actuator
≤ 80 °C
Max. temperature valve body
≤ 150 °C
Add-Ons for Your Product
Valve
Actuator
Temperature management
Gate

64.2 HV Control Gate Valve 64252-JEGG 3D CAD File

STP 21.30 MB

64.2 HV Control Gate Valve 64252-JEGG 2D Dimension Drawing

PDF 638.45 KB

64.2 HV Control Gate Valve 64252-JEGG Manual

PDF 2.23 MB

64.2 HV Control Gate Valve 64252-JEGG Product Datasheet

PDF 258.01 KB
