Series

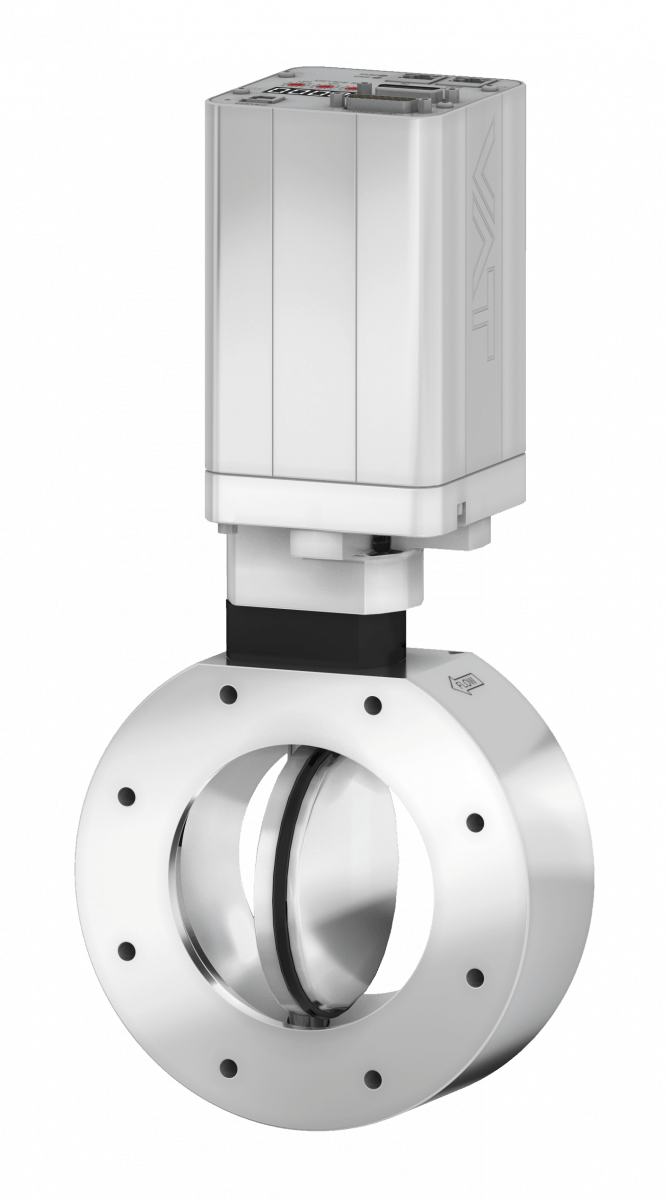

61.6 HV Butterfly Control and Isolation Valve

  • 61.6 - 61634-KEAF-0001
61.6 - 61634-KEAF-0001

Series

61.6 HV Butterfly Control and Isolation Valve

Article number
61634-KEAF-0001
1 × 10-8 mbar to 1.2 bar (abs)

Fast, Precise Downstream Pressure Control and Isolation

  • Technical data
  • Downloads
Size
DN 50 (2")
Flange
ISO-KF
Material
Stainless steel
Controller interface + sensors
Profibus / 2 sensors
Controller Configuration
SPS
Pressure Min.
1 × 10-8 mbar
Pressure Max.
1.2 bar (abs)
Differential Pressure on Plate
≤ 1 bar
Close to open
0.6 s
Open to close
0.6 s
Mounting Position
Any
Seal
FKM
Pressure control (throttling) default speed
0.5 s
Cycles until first service
2 000 000
Weight
3.6 kg / 7.94 lbs
Max. temperature valve body
≤ 120 °C
Add-Ons for Your Product
Valve
Controller-Interface
Gate
Actuator
Temperature Management

61.6 HV Butterfly Control and Isolation Valve 61634-KEAF-0001 Product Datasheet

PDF 87.67 KB

61.6 HV Butterfly Control and Isolation Valve 61634-KEAF-0001 2D Dimension Drawing

PDF 1.40 MB

61.6 HV Butterfly Control and Isolation Valve 61634-KEAF-0001 3D CAD File

ZIP 4.54 MB

Spare parts

Please specify your spare part need at the end of your selection process, on the next page.
