Series

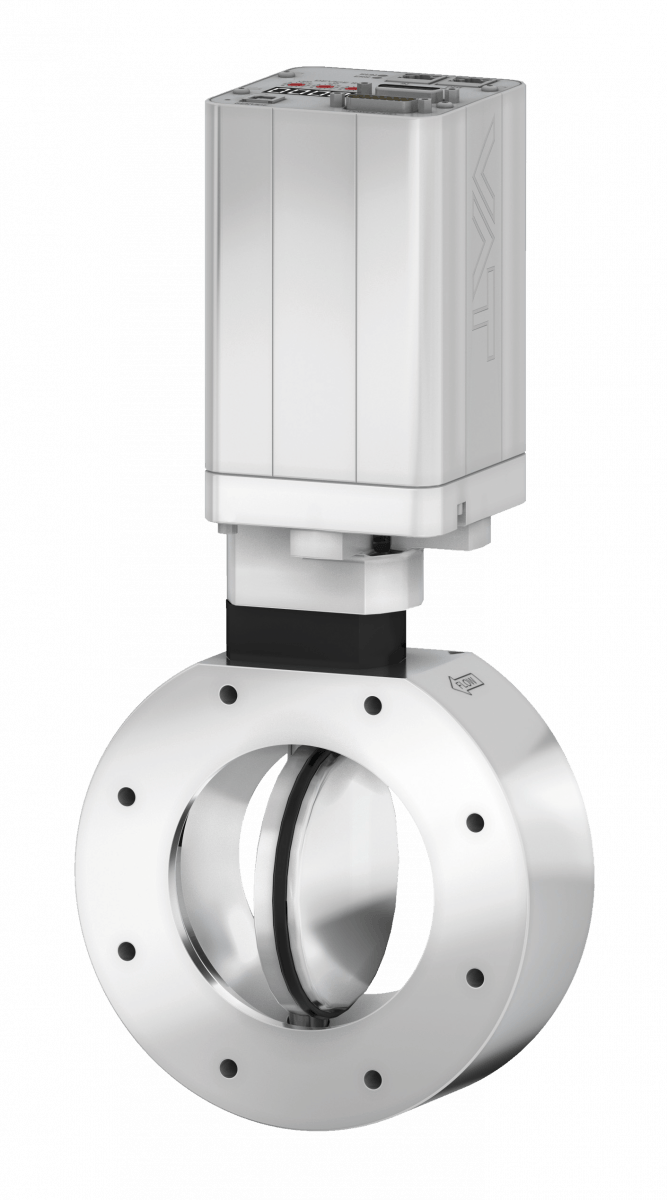

61.6 HV Butterfly Control and Isolation Valve

  • 61.6 - 61632-KEAX-0001
61.6 - 61632-KEAX-0001

Series

61.6 HV Butterfly Control and Isolation Valve

Article number
61632-KEAX
1 × 10-8 mbar to 1.2 bar (abs)

Fast, precise downstream pressure control and isolation

  • Technical data
  • Downloads
Size
DN 40 (1 ½")
Flange
ISO-KF
Material
Stainless steel
Controller interface + sensors
EtherCAT / 2 sensors
Controller configuration
SPS
Pressure min.
1 × 10-8 mbar
Pressure max.
1.2 bar (abs)
Differential pressure on plate
≤ 1 bar
Close to open
0.6 s
Open to close
0.6 s
Mounting position
Any
Seal
FKM
Pressure control (throttling) default speed
0.5 s
Cycles until first service
2 000 000
Max. temperature valve body
≤ 120 °C
Weight
3.3 kg / 7.28 lbs
Add-Ons for Your Product
Valve
Controller-Interface
Gate
Actuator
Temperature management

61.6 HV Butterfly Control and Isolation Valve 61632-KEAX 2D Dimension Drawing

PDF 1.39 MB

61.6 HV Butterfly Control and Isolation Valve 61632-KEAX 3D CAD File

ZIP 4.54 MB

61.6 HV Butterfly Control and Isolation Valve 61632-KEAX Product Datasheet

PDF 87.67 KB

Spare parts

Please specify your spare part need at the end of your selection process, on the next page.
