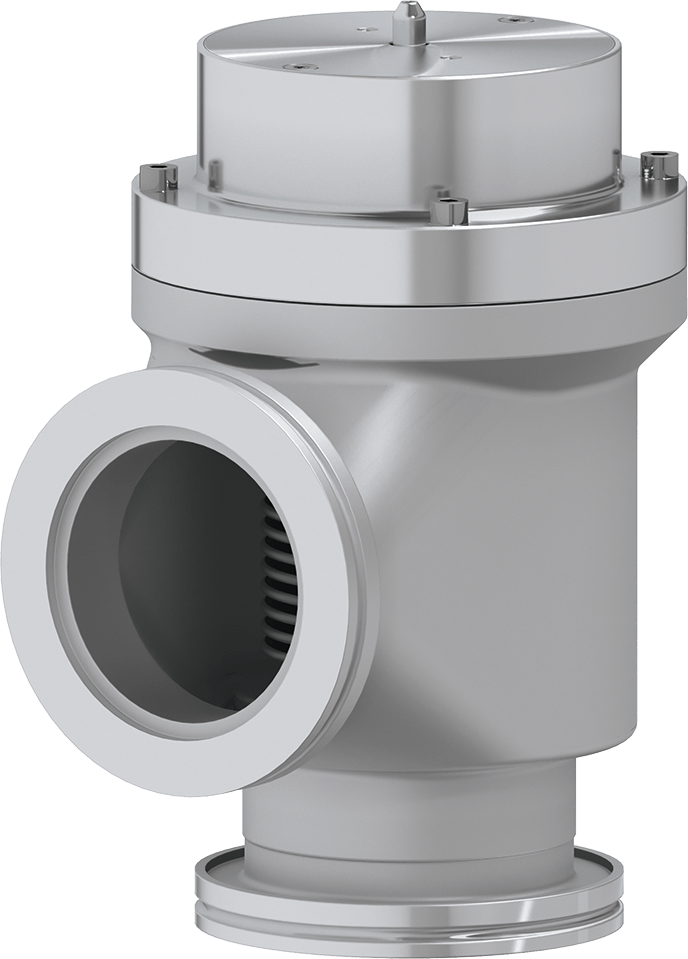

Name: 26.4 - 26436-QE21
Brand: VAT
SKU: 26436-QE21

Technical data
Downloads

Size

DN 63 (2 ½")

Flange

ISO-K

Material

Stainless steel

Actuator

Pneumatic: single acting with closing spring (NC)

Position Indication Signal

Yes

Solenoid

Pressure Min.

1 × 10^-⁸ mbar

Pressure Max.

4.0 bar (abs)

Conductance

160 ls⁻¹

Differential Pressure on Plate

≤ 5 bar

Differential Pressure at opening

≤ 1 bar

Cylinder volume

0.112 l

Max. compressed air pressure

8 bar / 116 psi

Min. compressed air pressure

4 bar / 58 psi

Max. temperature position indicator

≤ 80 °C

Close open time

0.7 s

Weight

3.4 kg / 7.5 lbs

Max. Temperature Actuator

≤ 120 °C

Max. temperature valve body

≤ 150 °C

Add-Ons for Your Product

Valve

Customer specific flange

Actuator

Different solenoid specification

One-touch pneumatic fittings

Common connector for position indicator and solenoid

Position indicator

High temperature position indicator

Gate

Alternative sealing materials

Sealing kit pneumatic 24.4, 24.5, 26.4, 26.5 DN63, DN80 (single-acting, closing) ID: 250696

Sealing kit vacuum 26.4, 26.5 DN63 ID: 357196

Request for quote
