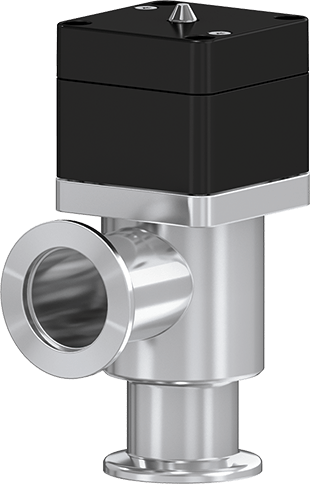

Name: 26.4 - 26420-KE42
Brand: VAT
SKU: 26420-KE42

Technical data
Downloads

Size

DN 10 (⅜")

Flange

ISO-KF

Material

Stainless steel

Actuator

Pneumatic: single acting with opening spring (NO)

Position Indication Signal

Yes

Solenoid

Yes

Pressure Min.

1 × 10^-⁸ mbar

Pressure Max.

5.0 bar (abs)

Conductance

3 ls⁻¹

Differential Pressure on Plate

≤ 5 bar

Differential Pressure at opening

≤ 1 bar

Conductance DO NOT USE

Max. temperature solenoid

≤ 80 °C

Cylinder volume

0.004 l

Max. compressed air pressure

8 bar / 116 psi

Min. compressed air pressure

4 bar / 58 psi

Max. temperature position indicator

≤ 80 °C

Close open time

0.1 s

Weight

0.4 kg / 0.88 lbs

Max. Temperature Actuator

≤ 120 °C

Max. temperature valve body

≤ 150 °C

Add-Ons for Your Product

Valve

Customer specific flange

Actuator

Different solenoid specification

One-touch pneumatic fittings

Common connector for position indicator and solenoid

Position indicator

High temperature position indicator

Gate

Alternative sealing materials

Sealing Kit vacuum 21.6, 26.4, 26.5, 91.5 DN16 (single-acting) ID: 242324

Sealing Kit pneumatic 24.4, 24.5, 26.4, 26.5, 28.4 DN10/16 (single-acting, opening) ID: 322768
