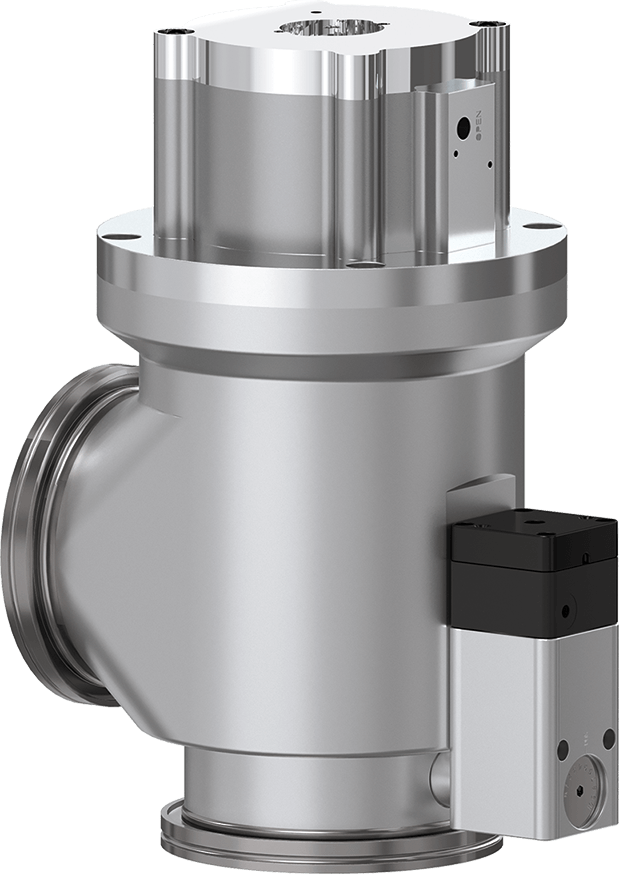

29.2 HV Angle Valve with Soft-Pump Function

  • 29.2 - 29240-QA14
  • 29.2 HV Angle Valve with Soft-Pump Function
29.2 - 29240-QA14
29.2 HV Angle Valve with Soft-Pump Function
View dimensions

Series

29.2 HV Angle Valve with Soft-Pump Function

Article number
29240-QA14
1 × 10-7 mbar to 2 bar (abs)

Avoids turbulence or condensation, large conductance spectrum (DN 100 - 160)

  • Technical data
  • Downloads
Size
DN 100 (4")
Flange
ISO-K
Material
Aluminum
Actuator
Pneumatic: double acting
Position indication signal
No
Solenoid
No
Pressure min.
1 × 10-7 mbar
Pressure max.
2.0 bar (abs)
Conductance
440 ls⁻¹
Differential pressure on plate
≤ 2 bar
Differential pressure at opening
≤ 0.3 bar
Cylinder volume
0.33 l
Max. compressed air pressure
12 bar / 174 psi
Min. compressed air pressure
4.5 bar / 65 psi
Close open time
1 s
Weight
9.1 kg / 20.06 lbs
Max. temperature actuator
≤ 120 °C
Max. temperature valve body
≤ 150 °C
