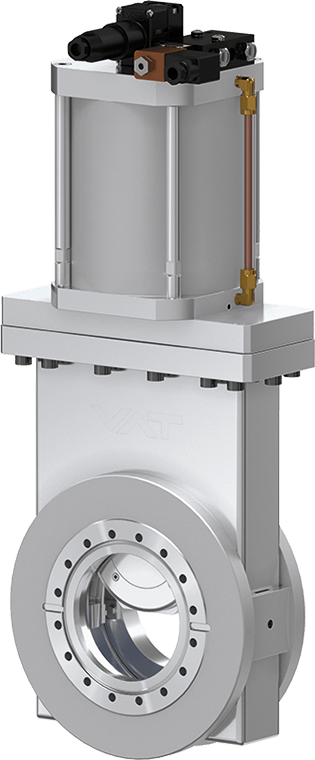

48.2 XHV All-Metal Gate Valve

  • 48.2 - 48236-CE74
  • 48.2 XHV All-Metal Gate Valve
48.2 - 48236-CE74
48.2 XHV All-Metal Gate Valve
View dimensions

Series

48.2 XHV All-Metal Gate Valve

Article number
48236-CE74
XHV to 2 bar (abs)

For high temperature (DN 63, 100, 160)

  • Technical data
  • Downloads
Size
DN 63 (2 ½")
Flange
CF-F (metric threads)
Material
Stainless steel
Actuator
Pneumatic: double acting
Position indication signal
Visual (Mechanical), 80° C
Solenoid
Yes
Pressure min.
XHV
Pressure max.
2.0 bar (abs)
Conductance
400 ls⁻¹
Differential pressure on plate
≤ 2 bar
Differential pressure at opening
≤ 0.5 bar
Cylinder volume
0.5 l
Max. compressed air pressure
8 bar / 116 psi
Min. compressed air pressure
4 bar / 58 psi
Max. temperature position indicator
≤ 80 °C (Option: 200 °C)
Close open time
2 s
Weight
17.3 kg / 38.14 lbs
Max. temperature actuator
≤ 200 °C
Max. temperature valve body
≤ 200 °C
Add-Ons for Your Product
Valve
Position indicator
Actuator

48.2 XHV All-Metal Gate Valve 48236-CE74 2D Dimension Drawing

PDF 304.66 KB

48.2 XHV All-Metal Gate Valve 48236-CE74 Manual

PDF 450.60 KB

48.2 XHV All-Metal Gate Valve 48236-CE74 Manual

PDF 450.60 KB

48.2 XHV All-Metal Gate Valve 48236-CE74 Product Datasheet

PDF 83.29 KB

48.2 XHV All-Metal Gate Valve 48236-CE74 3D CAD File

ZIP 528.23 KB
