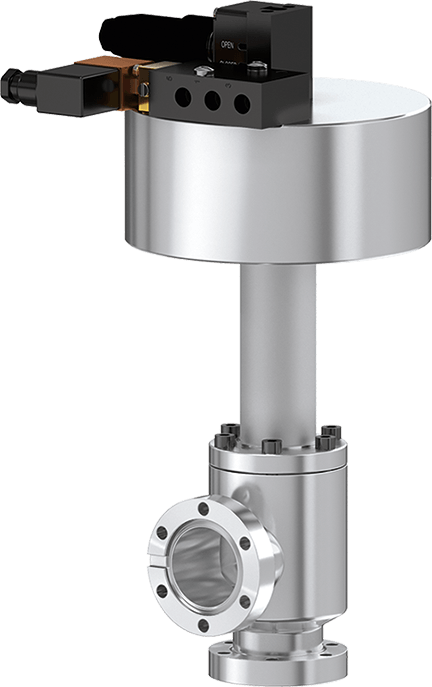

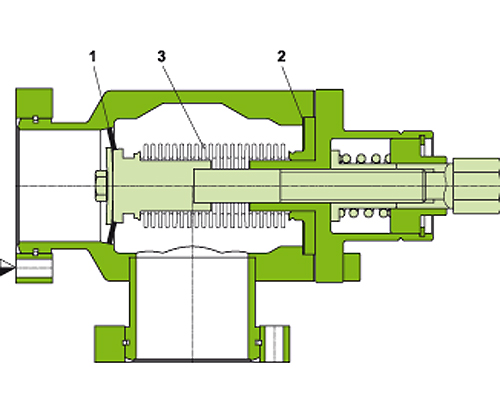

57.0 XHV All-Metal Angle Valve

  • 57.0 - 57036-GE24
  • 57.0 XHV All-Metal Angle Valve
57.0 - 57036-GE24
57.0 XHV All-Metal Angle Valve
View dimensions

Series

57.0 XHV All-Metal Angle Valve

Article number
57036-GE24
XHV to 5 bar (abs)

For extreme temperature and radiation requirements (DN 63 - 160)

  • Technical data
  • Downloads
Size
DN 63 (2 ½")
Flange
CF-R (rotatable flange)
Material
Stainless steel
Actuator
Pneumatic: double acting
Position Indication Signal
Visual (Mechanical), 80° C
Solenoid
No
Pressure Min.
XHV
Pressure Max.
5.0 bar (abs)
Conductance
125 ls⁻¹
Differential Pressure on Plate
≤ 5 bar
Differential Pressure at opening
≤ 1 bar
Cylinder volume
0.55 l
Max. compressed air pressure
5 bar / 73 psi
Min. compressed air pressure
4 bar / 58 psi
Max. temperature position indicator
≤ 80 °C (Option: 200 °C)
Weight
17.2 kg / 37.92 lbs
Max. Temperature Actuator
≤ 200 °C
Max. temperature valve body
≤ 350°C
Add-Ons for Your Product
Valve
Position indicator
Actuator

57.0 XHV All-Metal Angle Valve 57036-GE24 2D Dimension Drawing

PDF 346.00 KB

57.0 XHV All-Metal Angle Valve 57036-GE24 Product Datasheet

PDF 106.64 KB

57.0 XHV All-Metal Angle Valve 57036-GE24 3D CAD File

ZIP 541.04 KB

57.0 XHV All-Metal Angle Valve 57036-GE24 Manual

PDF 598.11 KB
