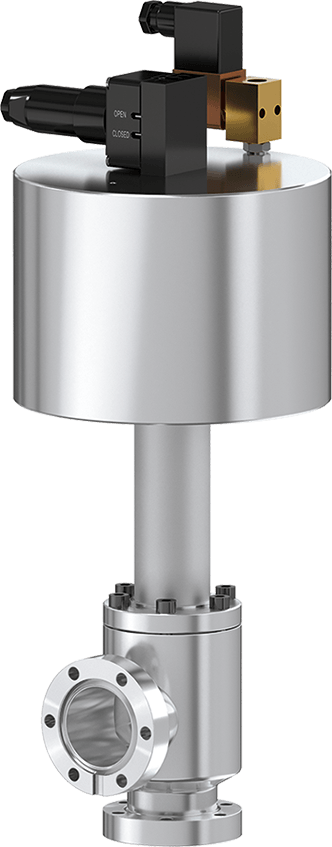

57.1 XHV All-Metal Angle valve

  • 57.1 - 57124-GE11
  • 57.1 XHV All-Metal Angle valve
57.1 - 57124-GE11
57.1 XHV All-Metal Angle valve
View dimensions

Series

57.1 XHV All-Metal Angle valve

Article number
57124-GE11
XHV to 5 bar (abs)

For extreme temperature and radiation requirements (DN 10 - 40)

  • Technical data
  • Downloads
Size
DN 16 (⅝")
Flange
CF-R (rotatable flange)
Material
Stainless steel
Actuator
Pneumatic: single acting with closing spring (NC)
Position indication signal
No
Solenoid
No
Pressure min.
XHV
Pressure max.
5.0 bar (abs)
Conductance
5 ls⁻¹
Differential pressure on plate
≤ 5 bar
Differential pressure at opening
≤ 1 bar
Cylinder volume
0.12 l
Max. compressed air pressure
9 bar / 131 psi
Min. compressed air pressure
6 bar / 87 psi
Weight
4.6 kg / 10.14 lbs
Max. temperature actuator
≤ 150 °C
Max. temperature valve body
≤ 350°C
