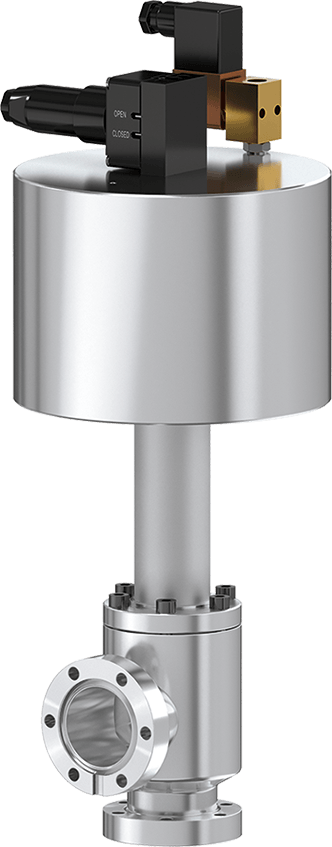

57.1 XHV All-Metal Angle valve

  • 57.1 - 57124-GE05
  • 57.1 XHV All-Metal Angle valve
57.1 - 57124-GE05
57.1 XHV All-Metal Angle valve
View dimensions

Series

57.1 XHV All-Metal Angle valve

Article number
57124-GE05
XHV to 5 bar (abs)

For extreme temperature and radiation requirements (DN 10 - 40)

  • Technical data
Size
DN 16 (⅝")
Flange
ISO-KF
Material
Stainless steel
Actuator
Pneumatic: single acting with closing spring (NC)
Position indication signal
Visual (Mechanical), 200° C
Solenoid
Yes
Pressure min.
1 × 10-8 mbar
Pressure max.
5.0 bar (abs)
Conductance
5 ls⁻¹
Differential pressure on plate
≤ 5 bar
Differential pressure at opening
≤ 1 bar
Cylinder volume
0.035 l
Max. compressed air pressure
7 bar / 102 psi
Min. compressed air pressure
4 bar / 58 psi
Max. temperature position indicator
≤ 200 °C
Close open time
1.7 s
Weight
18 kg / 39.68 lbs
Max. temperature actuator
≤ 200 °C
Max. temperature valve body
≤ 350°C
