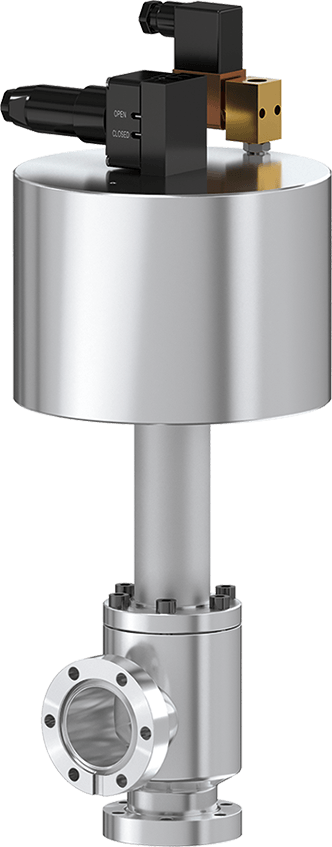

57.1 XHV All-Metal Angle valve

  • 57.1 - 57120-XE41
  • 57.1 XHV All-Metal Angle valve
57.1 - 57120-XE41
57.1 XHV All-Metal Angle valve
View dimensions

Series

57.1 XHV All-Metal Angle valve

Article number
57120-XE41
XHV to 5 bar (abs)

For extreme temperature and radiation requirements (DN 10 - 40)

  • Technical data
  • Downloads
Size
DN 10 (⅜")
Flange
Special
Material
Stainless steel
Actuator
Pneumatic: single acting with closing spring (NC)
Position indication signal
Visual (Mechanical), 80° C
Solenoid
Yes
Pressure min.
XHV
Pressure max.
5.0 bar (abs)
Conductance
1.5 ls⁻¹
Differential pressure on plate
≤ 5 bar
Cylinder volume
0.061 l
Max. compressed air pressure
16 bar / 232 psi
Min. compressed air pressure
6 bar / 87 psi
Max. temperature position indicator
≤ 80 °C (Option: 200 °C)
Close open time
1 s
Max. temperature actuator
≤ 150 °C
Max. temperature valve body
≤ 250 °C
Add-Ons for Your Product
Valve
Position indicator
Actuator

57.1 XHV All-Metal Angle valve 57120-XE41 Manual

PDF 292.31 KB

57.1 XHV All-Metal Angle valve 57120-XE41 2D Dimension Drawing

PDF 114.79 KB

571_XHV_All_Metal_Angle_valve_57120_XE41_3D_CAD_File-418104.zip

ZIP 422.99 KB
