Series

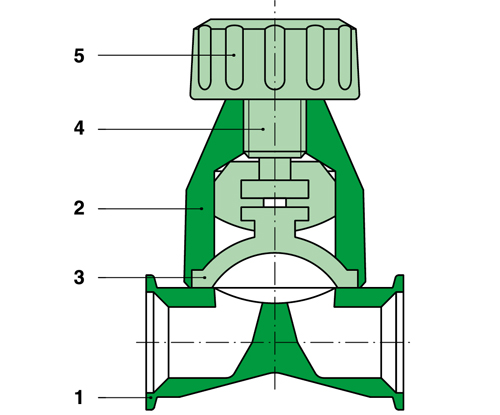

22.0 Diaphragm Valve

  • 22.0 - 22032-KA01
  • 22.0 Diaphragm Valve
22.0 - 22032-KA01
22.0 Diaphragm Valve
View dimensions

Series

22.0 Diaphragm Valve

Article number
22032-KA01
1 × 10-7 mbar to 5 bar (abs)

The multipurpose solution for gases and liquids

  • Technical data
  • Downloads
Size
DN 40 (1 ½")
Flange
ISO-KF
Material
Aluminum
Actuator
Manual
Position Indication Signal
No
Solenoid
No
Pressure Min.
1 × 10-7 mbar
Pressure Max.
5.0 bar (abs)
Conductance
17 ls⁻¹
Differential Pressure on Plate
≤ 5 bar
Differential Pressure at opening
≤ 5 bar
Weight
1.2 kg / 2.65 lbs
Max. Temperature Actuator
≤ 50 °C
Max. temperature valve body
≤ 100 °C
Add-Ons for Your Product
Valve
Position indicator
Actuator
Gate

22.0 Diaphragm Valve 22032-KA01 3D CAD File

ZIP 266.20 KB

22.0 Diaphragm Valve 22032-KA01 2D Dimension Drawing

PDF 186.39 KB

22.0 Diaphragm Valve 22032-KA01 Product Datasheet

PDF 20.34 KB
